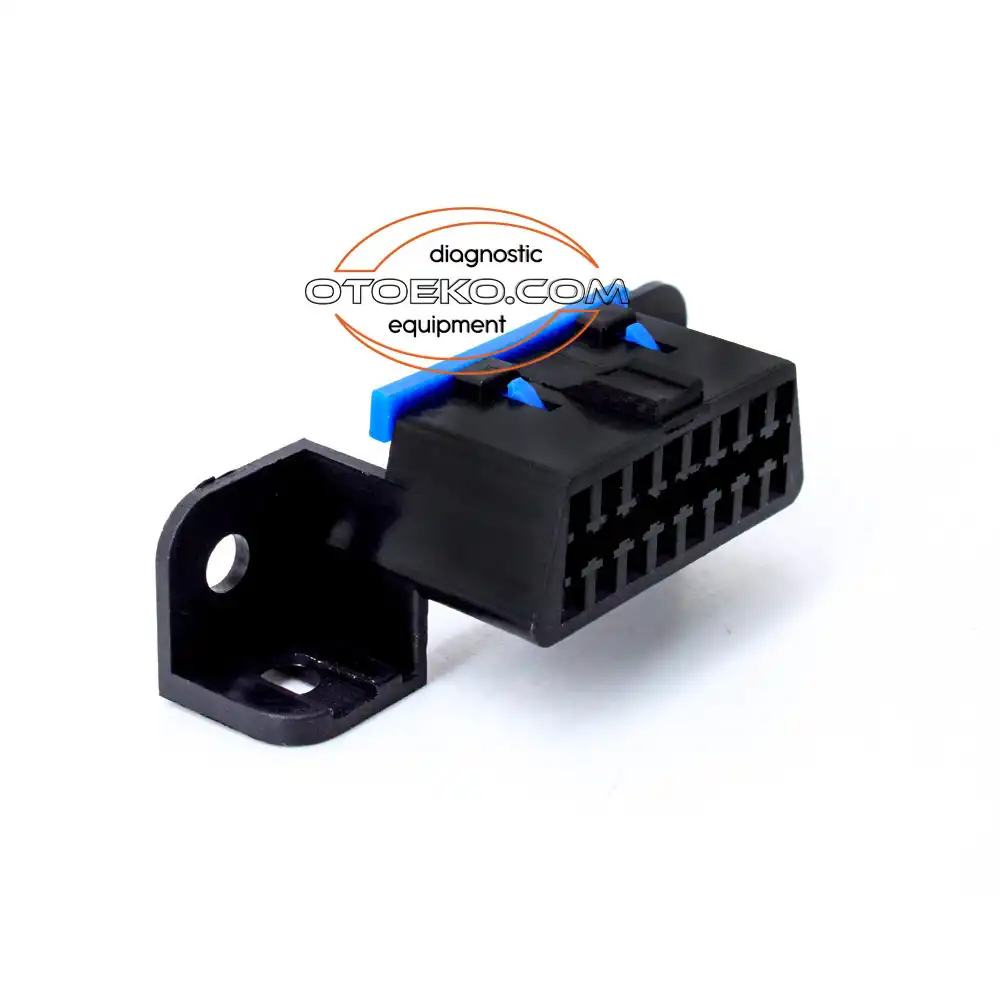

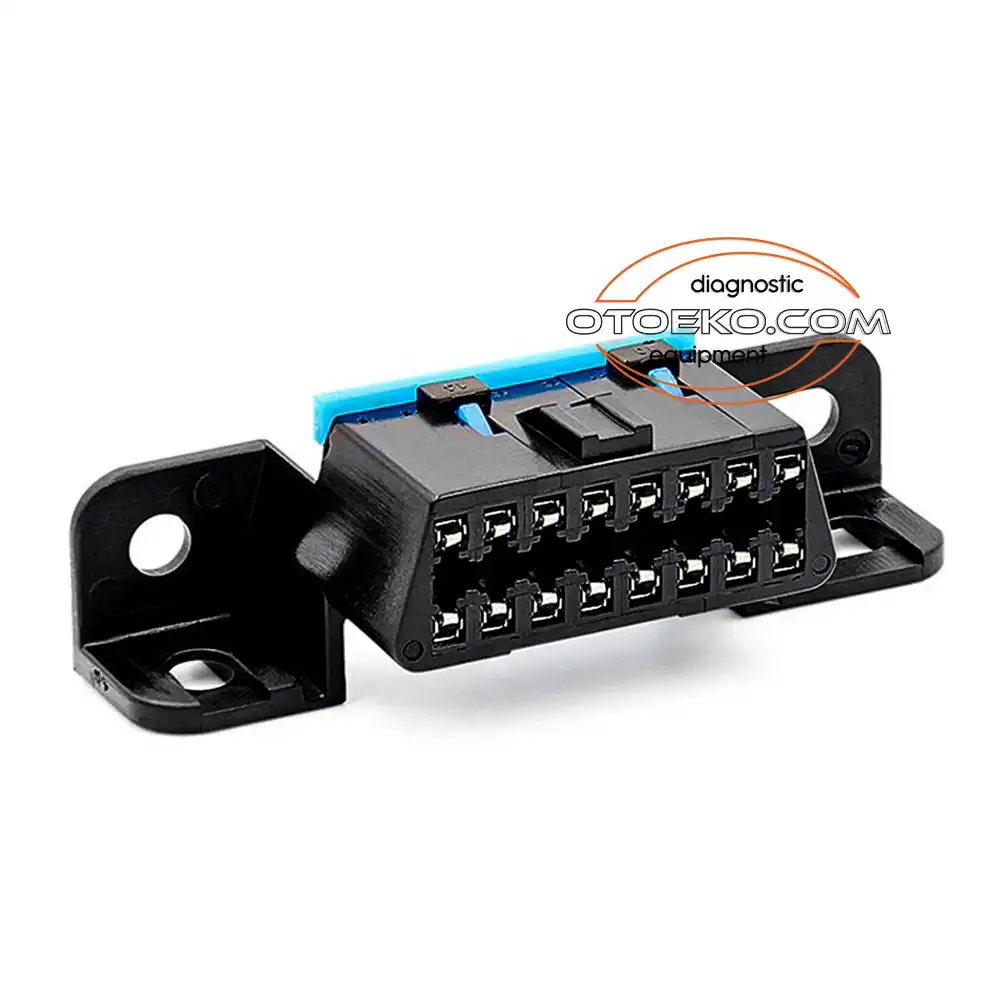

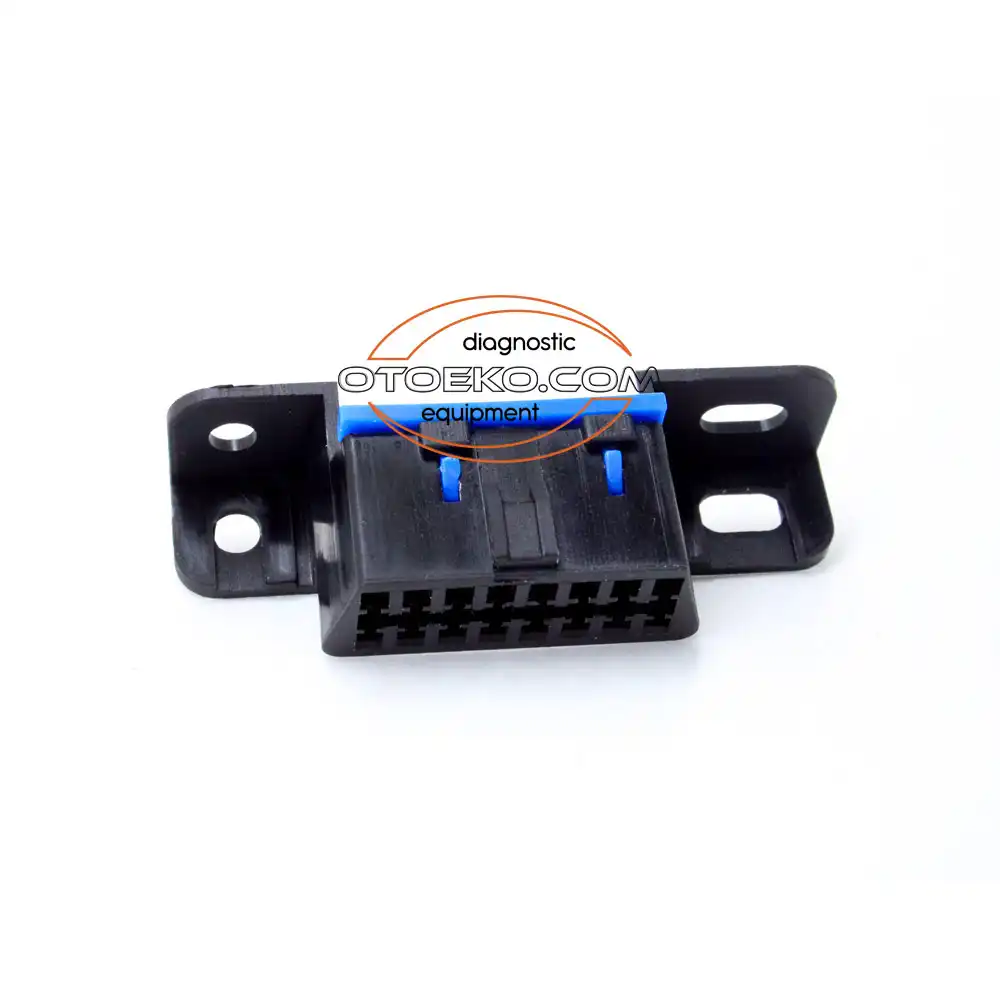

J1962F Obd2 16 Pinli Dişi Ecu Konnektör

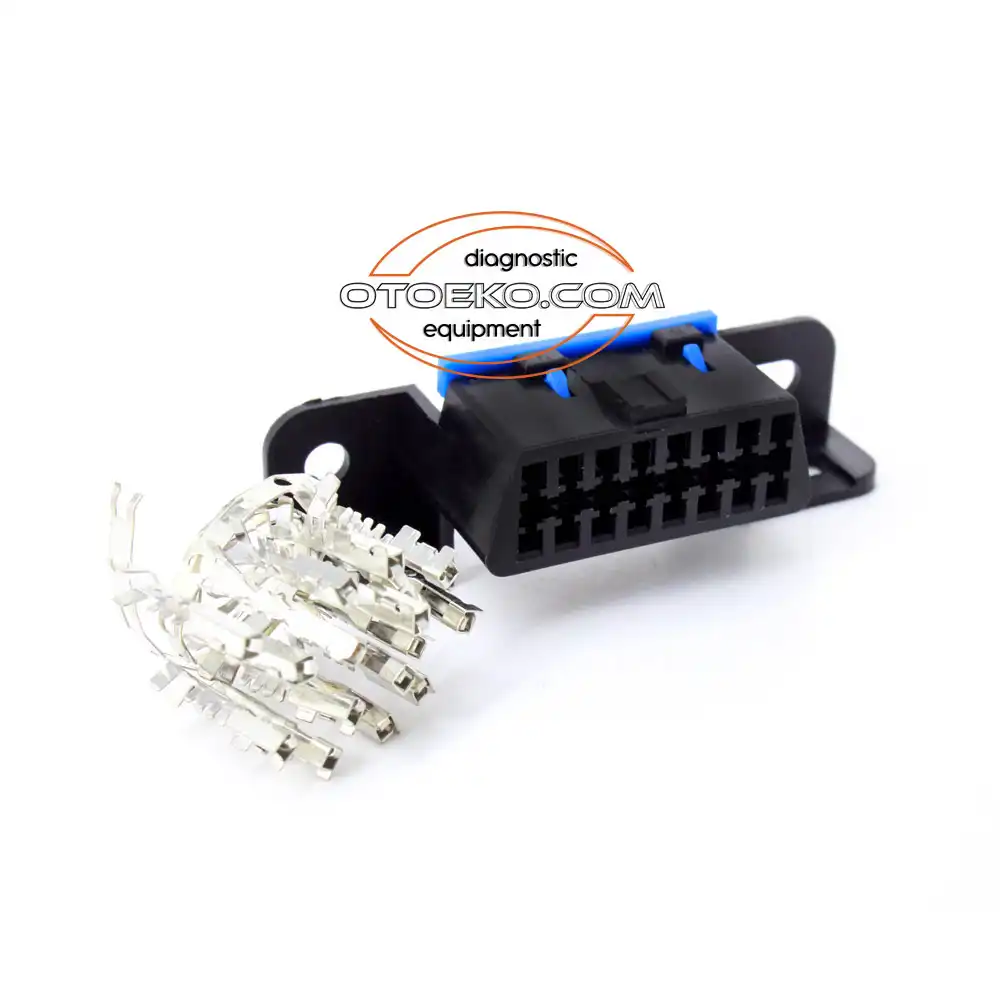

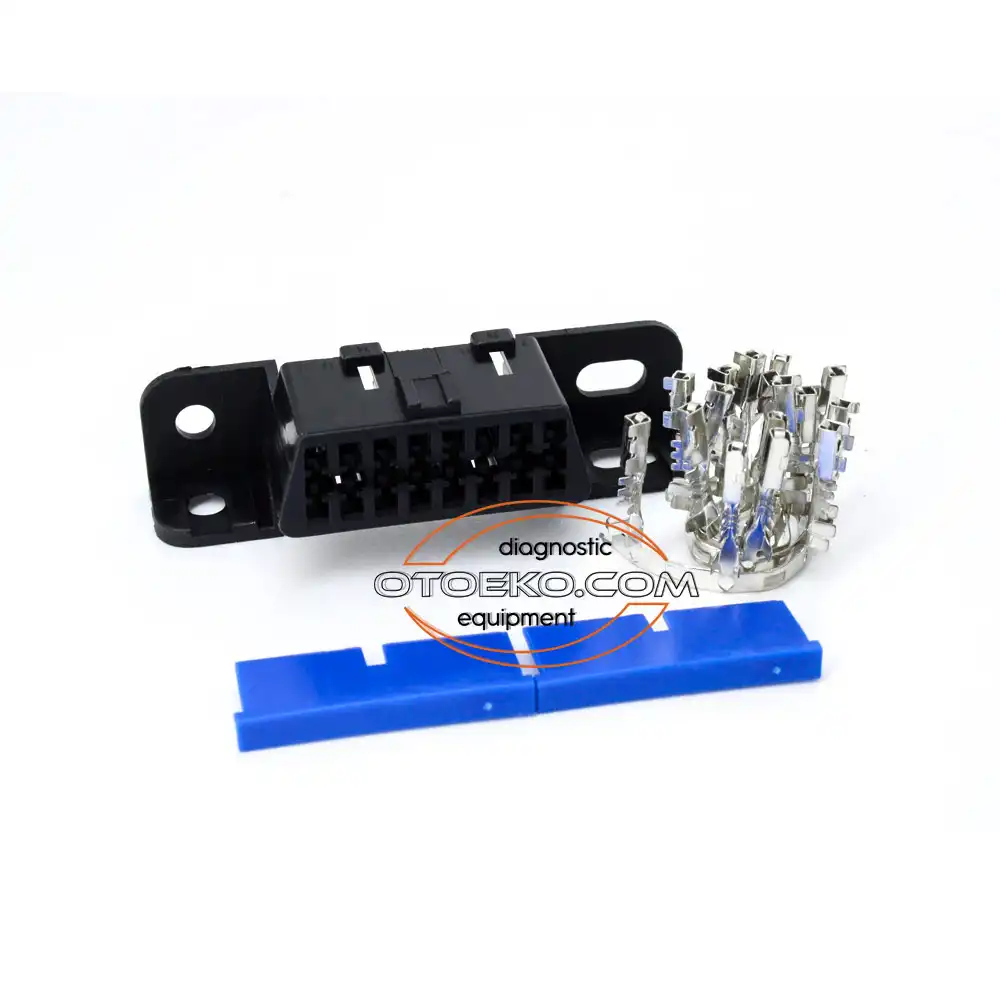

J1962F Obd2 16 Pinli Dişi Ecu Konnektör, Aracınızın üzerinde bulunan Beyin-Ecu soketidir. Pin soketleri paket içeriğine dahildir.

*PIN 1 – Manufacturers discretion,
*PIN 2 – SAE J1850 Line (Bus +),
*PIN 3 – Manufacturers discretion,
*PIN 4 – Chassis Ground,
*PIN 5 – Signal Ground,
*PIN 6 – SAE J2284 (CAN High),
*PIN 7 – K Line of ISO 9141-2 & ISO/DIS 4230-4,
*PIN 8 – Manufacturers discretion,
*PIN 9 – Manufacturers discretion,
*PIN 10 – SAE J1850 Line (Bus -),
*PIN 11 – Manufacturers discretion,
*PIN 12 – Manufacturers discretion,
*PIN 13 – Manufacturers discretion,
*PIN 14 – SAE J2284 (CAN Low),
*PIN 15 – L Line of ISO 9141-2 & ISO/DIS 4230-4,
*PIN 16 – Unswitched Vehicle Battery Positive.
