AUTOOL BT960 · FLAGSHIP LEAD-ACID & EV LITHIUM DIAGNOSTIC STATION

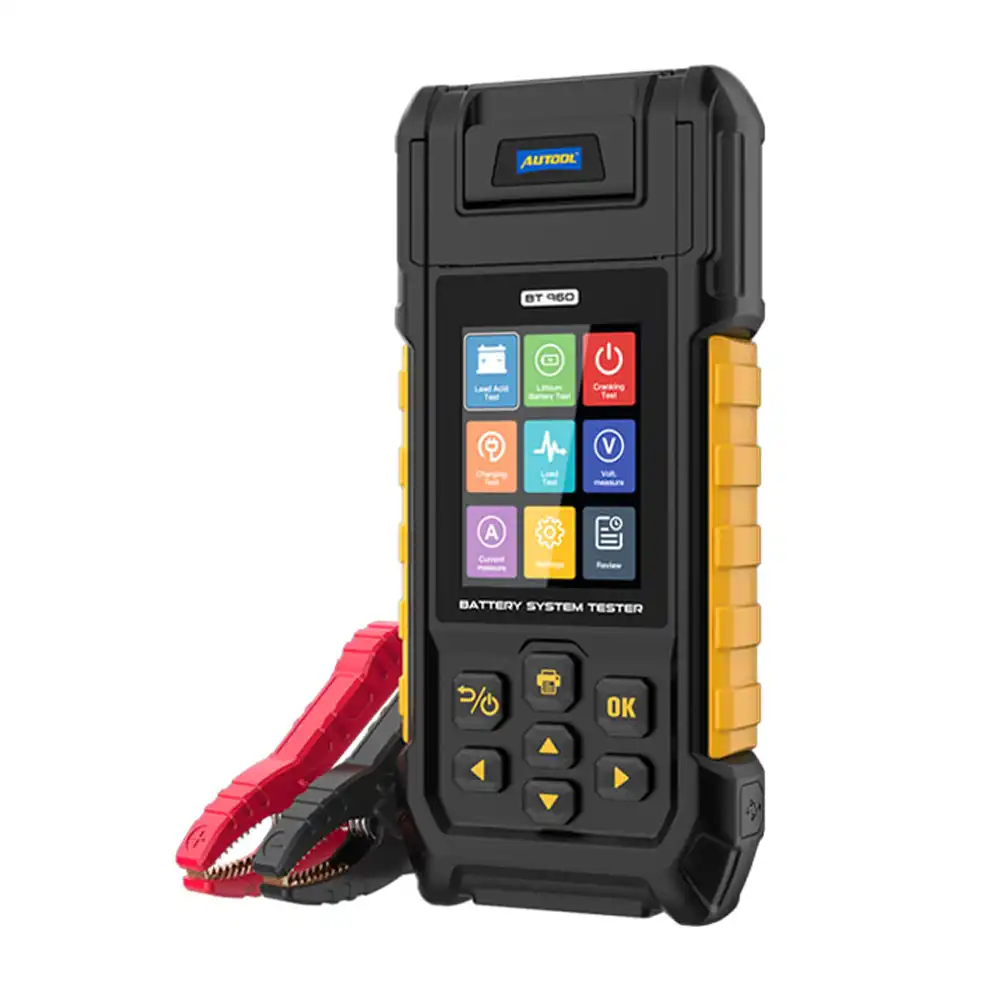

AUTOOL BT960 12V/24V Lead-Acid & EV Lithium Battery Tester with Thermal Printer
Diagnose 12V/24V automotive batteries, 0–80V lithium packs, starter cranking, alternator charging, and 0–10A parasitic current drains—then print a custom plate-numbered thermal report on the spot.
- 0-80V & 30-2000 CCA
- Lithium + AGM/EFB/GEL
- Built-in Thermal Printer
Engineered for Professional Workshop Demands
The AUTOOL BT960 is built to deliver speed, accuracy, and durability in busy service bays.
Lead-Acid & EV Lithium Dual-Chemistry Diagnostics
Tests Flooded (SLI), AGM Flat, AGM Spiral, EFB, and GEL batteries plus Iron-Lithium (LiFePO4), Polymer Lithium (Li-Po), and Ternary Lithium (Li-ion) packs.
0–10A Battery Leakage Monitoring & Voltage Waveforms
Tracks parasitic dark-current drains up to 10A and plots live voltage rise/drop waveforms to catch intermittent electrical drains.
Customizable 57mm Built-In Thermal Printer
Prints SOH, SOC, internal resistance (mΩ), CCA, cranking, charging, and lithium data along with vehicle license plate, date, and serial number.
Built-In Battery Spec Database & Global Standards
Supports CCA (30–2000), IEC/DIN (30–2500), SAE, EN, JIS, MCA, CA, and GB (30–300Ah) with an onboard reference lookup table.
NEXT-GEN BATTERY COVERAGE
From 12V/24V Start-Stop AGM to 0–80V EV Lithium Packs
While ordinary testers stop at 12V/24V lead-acid batteries, AUTOOL BT960 expands your workshop capabilities up to 80V DC and adds dedicated test profiles for LiFePO4, Li-Po, and Ternary Li-ion cells.
- Milliohm internal resistance precision on AGM, EFB, and GEL batteries
- Dedicated lithium health and current analysis for EVs and energy storage
- Complete 12V & 24V starter cranking and alternator ripple/load testing
PARASITIC DRAIN & WAVEFORM ANALYSIS
Catch Hidden Overnight Battery Drains with 0–10A Monitoring
Stop replacing healthy batteries when the real culprit is a parasitic module drain. BT960's Battery Leakage Monitoring tracks current fluctuations so you can verify sleep-mode draw.
- Live voltage and current trend waveform graphing on the 3.2" HD screen
- Onboard Battery Specification Table compares test results against factory ratings
- Reverse-polarity protected insulated copper Kelvin clamps
INSTANT CUSTOMER PROOF
Print Plate-Numbered Thermal Diagnostic Receipts in Seconds
Build immediate customer trust by handing over a printed thermal receipt stamped with the vehicle's license plate, date, measured CCA, SOH%, and clear replacement verdict.
- Dual auxiliary power: Type-C 5V/1A or 4×AAA batteries for testing dead 0V batteries
- Supports 8+ languages including English and Turkish
- Delivered in a rugged blow-molded carrying case with 2 thermal paper rolls
Detailed Visual & Technical Infographic Showcase
Close-up hardware details and application scenes of the AUTOOL BT960.
See It in Action
Watch the official product video demonstrating setup and real-world operation.
Technical Specifications & Hardware Parameters
Complete manufacturer-verified technical data and operating ranges.
| Brand / Model | AUTOOL BT960 Battery & EV Analyzer |
|---|---|
| Voltage Measurement Range | 0V – 80V DC |
| Current (Leakage) Range | 0A – 10A |
| CCA Capacity Range | 30 – 2000 CCA (IEC/DIN: 30–2500 · GB: 30–300Ah) |
| Lead-Acid Chemistries | Regular Flooded (SLI), AGM Flat, AGM Spiral, EFB, GEL |
| Lithium Chemistries | LiFePO4, Polymer Lithium (Li-Po), Ternary Li-ion |
| Test Modules | Lead-Acid, Lithium, Cranking, Charging, Load, Leakage |
|---|---|
| Display | 3.2-Inch Color HD LCD |
| Built-in Printer | 57mm Thermal Printer (Plate/Date/SN Stamp) |
| Auxiliary Power | Type-C 5V/1A or 4 × AAA Batteries |
| Operating Temperature | -20°C to +50°C |
| Warranty | 1-Year Official Otoeko Warranty |
Workshop Application & Operating Guide
Recommended 4-step standard operating procedure for accurate results.
Connect Clamps & Select Chemistry
Attach the Kelvin clamps and choose Lead-Acid (SLI/AGM/EFB/GEL) or Lithium (LiFePO4/Li-Po/Li-ion) from the main menu.
Enter Rating or Use Spec Table
Input the CCA/Ah rating (or select from the built-in Battery Specification Table) to get SOH, SOC, and mΩ in 3 seconds.
Run Cranking, Charging & Leakage Tests
Follow on-screen prompts to test starter voltage drop, alternator output, and 0–10A parasitic current leakage.
Print Custom Thermal Report
Enter the vehicle's license plate number and print the 57mm thermal diagnostic slip for the customer.
Conventional Methods vs. Professional Diagnostics
How precision engineering eliminates guesswork and comebacks.
Conventional / Basic Methods
- Standard testers only support 12V/24V lead-acid and cannot test Lithium or 80V
- No parasitic leakage current (0–10A) monitoring capability
- Cannot power on when connected to a deeply discharged battery
- No license-plate customization or thermal printout
With AUTOOL BT960
- Full Lead-Acid (AGM/EFB/GEL) + Lithium (LiFePO4/Li-ion) up to 80V DC
- Dedicated 0–10A Battery Leakage Monitor + live voltage waveforms
- Type-C 5V & AAA internal battery backup works even on dead 0V batteries
- Built-in 57mm thermal printer with license plate & date stamping
Package Contents — Ready for the Workshop
Complete factory kit inspected prior to dispatch.
- 1 × AUTOOL BT960 Battery & EV Diagnostic Analyzer Main Unit
- 1 × Heavy-Duty Copper Kelvin Clamp Harness & Leakage Test Leads
- 2 × 57mm Thermal Paper Rolls & Type-C USB Cable
- 1 × Hard Carrying Case & User Manual
1 Year Official Otoeko Warranty
The AUTOOL BT960 is backed by a 1 Year official Otoeko warranty against manufacturing defects, with full technical support.
Frequently Asked Questions
Key technical questions from technicians and workshops about the AUTOOL BT960.
What is the difference between AUTOOL BT960 and BT760?
BT960 is the top-of-the-line model that adds Lithium Battery Testing (LiFePO4, Li-Po, Ternary Li-ion), a wider 0–80V voltage range, 0–10A Parasitic Battery Leakage Monitoring, Voltage Waveform Display, and an onboard Battery Specification Lookup Table.
Which lithium battery types can BT960 test?
It supports Iron-Lithium (LiFePO4), Polymer Lithium (Li-Po), and Ternary Lithium (NMC/Li-ion) battery packs up to 80V.
How does the Battery Leakage Monitor work?
It measures current draw between 0A and 10A in real time, helping technicians identify parasitic drains that flatten batteries overnight.
What size thermal paper does the printer use?
Standard 57mm wide thermal paper rolls available at any office supply store.
Can I print the customer's license plate on the receipt?
Yes, you can input the license plate number, date, and serial number before printing.
What warranty is provided?
Backed by a 1-year official Otoeko distributor warranty.
