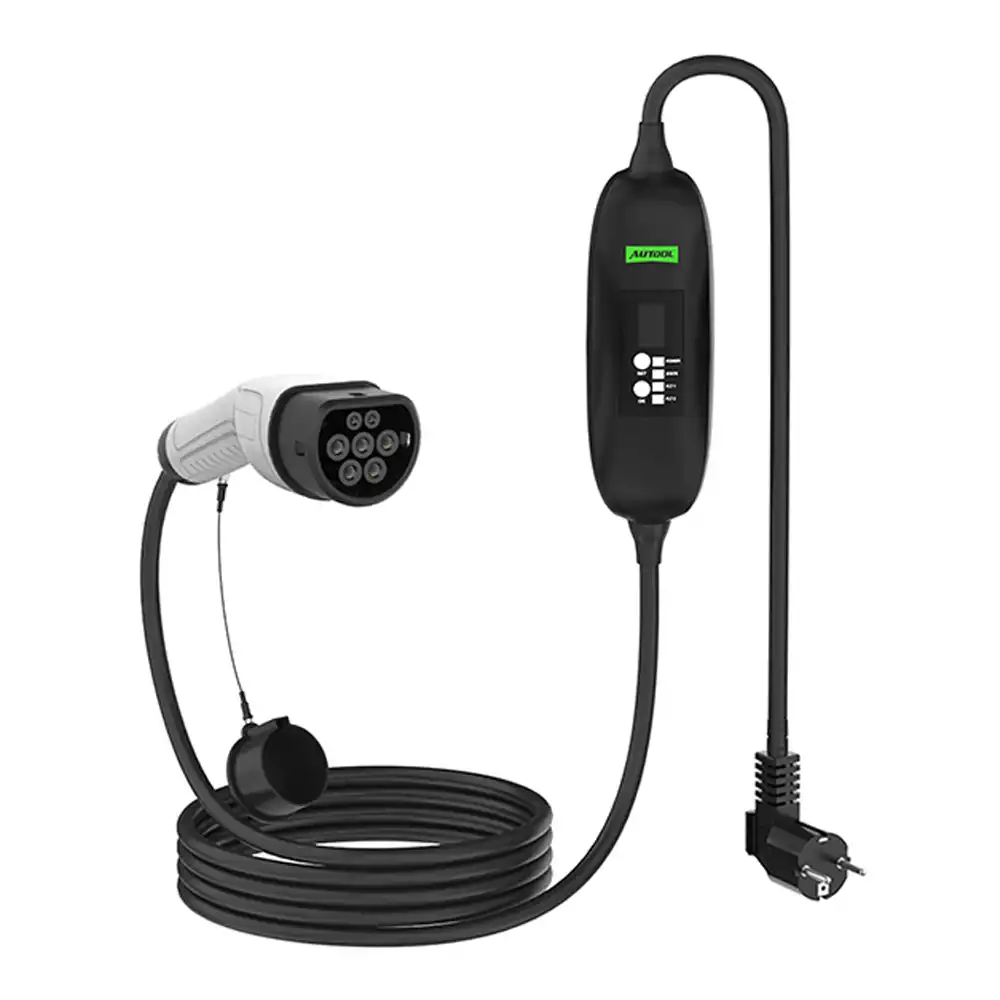

AUTOOL C350 · 3.5 KW SMART PORTABLE TYPE 2 EVSE
AUTOOL C350 Portable Electric Vehicle Charger (Type 2 · 8A-16A · IP65)
Select the exact amperage your wall circuit can handle (8A to 16A), schedule charging for off-peak hours, and monitor live kWh and temperature on the HD color display.
- 3.5 kW / 8A-16A
- IEC 62196-2 Type 2
- IP65 + Delay Timer
Engineered for Professional Workshop Demands
The AUTOOL C350 is built to deliver speed, accuracy, and durability in busy service bays.
5 Adjustable Current Settings (8A / 10A / 12A / 14A / 16A)
Protect older residential wiring by selecting 8A or 10A, or unlock full 16A (3.5 kW) charging on dedicated circuits.
0–8 Hour Off-Peak Scheduled Charging
Delay charging start in 30-minute steps up to 8 hours so your EV automatically charges during low-cost night utility hours.
HD Digital Display & LED Status Array
View real-time voltage, charging current, internal temperature (°C), delivered energy (kWh), and elapsed session time.
IP65 Weather Resistance & 13 Safety Protections
Operates reliably from -25°C to +55°C in rain or snow with active thermal throttling and leakage protection.
ADAPTIVE CIRCUIT PROTECTION
Five Amperage Levels Prevent Household Outlet Overheating
Not every domestic socket can sustain 16A continuously. AUTOOL C350 lets you step down the current to 8A (1.76 kW) or 10A (2.2 kW) on older wiring, or run at 16A (3.5 kW) on robust 16A circuits.
- Eliminates tripped breakers and warm wall sockets
- 5-meter oxygen-free pure copper cable with thick flame-retardant jacket
- Smart thermal sensor automatically reduces power if plug temperature rises
OFF-PEAK COST SAVINGS
Up to 8 Hours Scheduled Delay & Real-Time Energy Metering
Plug in when you arrive home and set the delay timer so charging begins automatically when night-time electricity rates drop.
- Adjustable from 0 to 480 minutes in 30-minute increments
- POWER, STATE, FLT1, and FLT2 LED indicators for instant status checks
- Automatically stops drawing power once the vehicle battery is full
UNIVERSAL TYPE 2 FITMENT
Compatible with All European & Turkish Type 2 EVs and PHEVs
Equipped with a high-strength flame-retardant IEC 62196-2 Type 2 connector that locks securely into any standard AC charging port.
- Works with Tesla, Togg, BYD, MG, VW, BMW, Mercedes-Benz, Audi, Renault, Hyundai, Kia
- IP65 dust-tight and water-jet resistant enclosure
- Includes a custom zippered hard-shell trunk organizer bag
Detailed Visual & Technical Infographic Showcase
Close-up hardware details and application scenes of the AUTOOL C350.
See It in Action
Watch the official product video demonstrating setup and real-world operation.
Technical Specifications & Hardware Parameters
Complete manufacturer-verified technical data and operating ranges.
| Brand / Model | AUTOOL C350 Portable EV Charger |
|---|---|
| Connector Type | IEC 62196-2 Type 2 (7-Pin) |
| Max Output Power | 3.5 kW (220V–240V AC · 50/60 Hz) |
| Selectable Current | 8A / 10A / 12A / 14A / 16A (5 Levels) |
| Delay Timer | 0 – 8 Hours (30-Min Increments) |
| Display | HD Digital LCD (V, A, kW, kWh, °C, Time) |
| Total Cable Length | 5 Meters (Oxygen-Free Pure Copper) |
|---|---|
| Ingress Protection | IP65 (Control Box) |
| Safety Protections | 13 Protections (Leakage, Over-Temp, UVP/OVP, Ground) |
| Operating Temperature | -25°C to +55°C |
| Weight & Case | ~2.8 kg · Zippered Carrying Case Included |
| Certifications & Warranty | CE, RoHS · 1-Year Official Otoeko Warranty |
Workshop Application & Operating Guide
Recommended 4-step standard operating procedure for accurate results.
Plug Into 230V Wall Outlet
Connect the AC plug to a grounded household or industrial socket; the LCD powers up and runs a self-check.
Select Current & Delay Time
Before connecting to the car, press the Set button to choose 8A–16A and optional delay hours (0–8h).
Connect Type 2 Gun to Vehicle
Insert the Type 2 connector firmly into the vehicle's charging inlet until it locks.
Monitor & Complete Charging
Charging starts automatically (or after the countdown); monitor live kWh and temperature on the screen.
Conventional Methods vs. Professional Diagnostics
How precision engineering eliminates guesswork and comebacks.
Conventional / Basic Methods
- Fixed-current chargers trip breakers on older household outlets
- No delay timer forces manual late-night plugging for cheap tariffs
- Blind LED-only bricks hide actual voltage, temperature, and kWh added
- Low IP ratings fail when exposed to outdoor rain
With AUTOOL C350
- 5-stage 8A–16A current selection adapts safely to any outlet
- Built-in 0–8h timer automates off-peak night charging
- Full LCD telemetry shows live V, A, °C, kW, and kWh
- IP65 weatherproof construction with 13 active safety shields
Package Contents — Ready for the Workshop
Complete factory kit inspected prior to dispatch.
- 1 × AUTOOL C350 3.5kW Portable EV Charger with 5m Type 2 Cable
- 1 × Custom Zippered Protective Carrying Bag
- 1 × User Manual & 1-Year Official Warranty Card
1 Year Official Otoeko Warranty
The AUTOOL C350 is backed by a 1 Year official Otoeko warranty against manufacturing defects, with full technical support.
Frequently Asked Questions
Key technical questions from technicians and workshops about the AUTOOL C350.
Which electric vehicles are compatible with AUTOOL C350?
All BEVs and PHEVs equipped with a standard IEC 62196-2 Type 2 charging port (Tesla, Togg, BYD, MG, BMW, Mercedes, VW, Audi, Renault, Hyundai, Kia, Volvo, etc.).
Which current setting should I use on a standard home socket?
For continuous overnight charging on a standard household outlet, 8A or 10A is recommended. Use 14A–16A on dedicated 16A circuits with 2.5mm² wiring.
Can I change the current while the car is charging?
For safety, select your desired current level (8A–16A) after plugging into the wall outlet but before plugging the Type 2 connector into the vehicle.
Is it safe to use outdoors in the rain?
Yes, the IP65-rated control box is sealed against dust and rain jets from -25°C to +55°C.
How much range does it add per hour?
At 16A (3.5 kW), it adds approximately 18–22 km of driving range per hour depending on vehicle efficiency.
What warranty is included?
Backed by a 1-year official Otoeko distributor warranty.
