AUTOOL DM303 · 12-IN-1 AUTOMOTIVE OSCILLOSCOPE & MULTIMETER

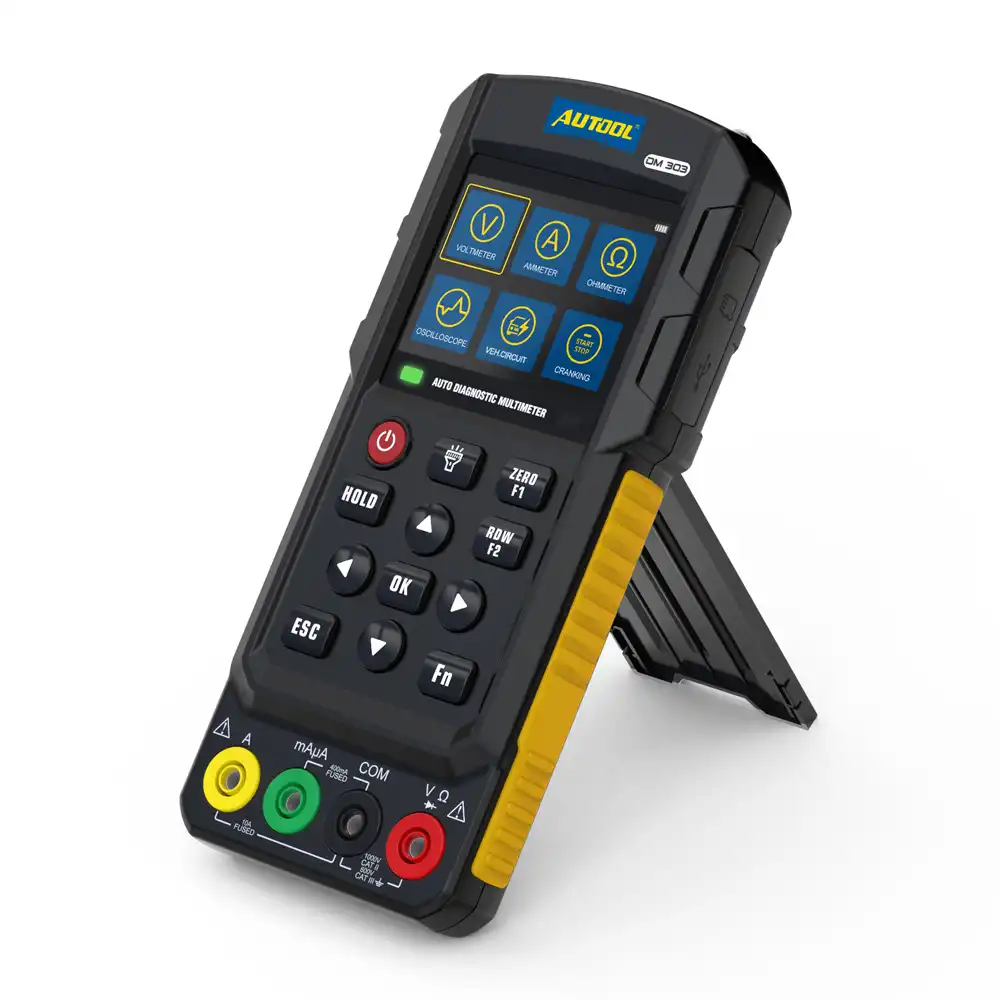

AUTOOL DM303 Automotive Diagnostic Oscilloscope & True-RMS Multimeter
Go deeper than OBD fault codes: view live sensor waveforms, inject simulated square/sine signals into the ECU, drive injectors, and verify CAN-Bus networks with one handheld instrument.
- Oscilloscope + Multimeter
- CAN/K-Line & Signal Gen
- Injector/Ignition · 1Y Warranty
Engineered for Professional Workshop Demands
The AUTOOL DM303 is built to deliver speed, accuracy, and durability in busy service bays.
500 kHz Color Graphical Oscilloscope
Captures intermittent signal dropouts on CKP/CMP crank/cam sensors, O2 sensors, MAF/MAP, throttle position sensors, and PWM actuators in real time.
Industrial True-RMS Multimeter (1000V / 20A / 60MΩ)
Measures up to 1000V DC, 750V AC, 20A AC/DC current, 60 MΩ resistance, 100 mF capacitance, 10 MHz frequency, diodes, and continuity.
Cranking, Injector, Relay & Inductive Ignition Tests
Records 12V starter cranking voltage drop, pulses fuel injectors and relays, and reads ignition pulses/RPM using the included inductive clamp.
Analog Signal Generator & CAN-Bus / K-Line Reader
Outputs adjustable square waves (frequency & duty cycle) and sine waves to simulate sensors, and monitors CAN-H/CAN-L and K-Line bus traffic.
PINPOINT ROOT CAUSES BEYOND DTC CODES
Verify Sensor Waveforms & ECU Inputs Before Replacing Parts
When a scan tool flags a crankshaft or oxygen sensor code, use the DM303's oscilloscope to inspect the live waveform and its signal generator to verify whether the ECU harness is intact.
- Live waveform graphing for CKP, CMP, ABS, MAP, and O2 sensors
- Simulate square-wave PWM and sine-wave sensor signals to test ECU response
- Diagnose shorted or open CAN-Bus (CAN-H/CAN-L) and K-Line networks
ACTIVE COMPONENT & IGNITION DIAGNOSTICS
Injector Pulsing, Relay Testing & Inductive RPM Pickup
Connect the included 12V battery power lead and specialized probes to actively drive and measure engine components.
- Pulse fuel injectors and automotive relays to verify mechanical operation
- 12V Cranking test captures starter draw and battery voltage sag
- Clamp-on inductive ignition pickup measures spark pulses and engine RPM
COMPLETE MASTER ACCESSORY KIT
2.8" Color TFT Display, Dual Power & Blow-Molded Case
Operates on 4×AA batteries for portable multimeter/oscilloscope work, or connects to the vehicle's 12V battery when driving injectors and relays.
- CAT III 1000V / CAT IV 600V overload protection
- Includes DMM probes, inductive ignition clamp, alligator leads, and breakout cables
- Backed by a 1-year official Otoeko warranty
Detailed Visual & Technical Infographic Showcase
Close-up hardware details and application scenes of the AUTOOL DM303.
See It in Action
Watch the official product video demonstrating setup and real-world operation.
Technical Specifications & Hardware Parameters
Complete manufacturer-verified technical data and operating ranges.
| Brand / Model | AUTOOL DM303 Automotive Diagnostic Multimeter |
|---|---|
| DC / AC Voltage | DC 0 – 1000V · AC 0 – 750V (True-RMS) |
| DC / AC Current | 0 – 20A (with mA / µA Precision Ranges) |
| Resistance & Capacitance | 0 Ω – 60 MΩ Resistance · 0 – 100 mF Capacitance |
| Oscilloscope & Frequency | 500 kHz Oscilloscope · 0 – 10 MHz Frequency |
| Signal Generator | Adjustable Square Wave (Hz/Duty) & Sine Wave |
| Automotive Modes | Cranking, Injector, Relay, Ignition/RPM, CAN/K-Line |
|---|---|
| Display | 2.8-Inch Backlit Color TFT LCD |
| Power Source | 4 × 1.5V AA Batteries + 12V Vehicle Battery Lead |
| Safety Rating | CAT III 1000V / CAT IV 600V Dual-Fused |
| Kit Weight | ~1.5 kg (Complete in Hard Carrying Case) |
| Warranty | 1 Year Official Otoeko Warranty |
Workshop Application & Operating Guide
Recommended 4-step standard operating procedure for accurate results.
Select Rotary Mode
Turn the rotary dial to Multimeter measurement, Oscilloscope, or Automotive Diagnostic (Auto) mode.
Capture Sensor Waveforms
Probe the sensor signal wire in Oscilloscope mode to view real-time voltage graphs, frequency, and Vpp.
Simulate Signals & Check CAN
Output a square or sine wave to test ECU inputs, or probe OBD pins 6/14/7 to verify CAN-Bus and K-Line activity.
Test Injectors & Ignition
Connect the 12V battery lead to pulse injectors/relays, or clip the inductive pickup onto an ignition lead to read RPM.
Conventional Methods vs. Professional Diagnostics
How precision engineering eliminates guesswork and comebacks.
Conventional / Basic Methods
- Standard multimeters cannot display fast sensor waveform glitches
- Cannot generate square/sine signals to simulate sensors for the ECU
- Lacks injector pulsing, inductive RPM pickup, and CAN-Bus testing
- Basic meters lack automotive-specific cranking and relay test modes
With AUTOOL DM303
- 500 kHz color oscilloscope plots live sensor waveforms on a 2.8" screen
- Built-in square/sine wave generator simulates sensor signals
- Tests injectors, relays, cranking voltage, ignition RPM, and CAN/K-Line
- CAT III 1000V True-RMS multimeter in a complete hard-case kit
Package Contents — Ready for the Workshop
Complete factory kit inspected prior to dispatch.
- 1 × AUTOOL DM303 Automotive Diagnostic Oscilloscope & Multimeter
- 1 × Pair of CAT III High-Voltage Multimeter Test Leads
- 1 × Inductive Ignition Pickup Clamp & Breakout Test Leads
- 1 × 12V Battery Power Clip Cable, Hard Carrying Case & User Manual
1 Year Official Otoeko Warranty
The AUTOOL DM303 is backed by a 1 Year official Otoeko warranty against manufacturing defects, with full technical support.
Frequently Asked Questions
Key technical questions from technicians and workshops about the AUTOOL DM303.
How is the DM303 different from a regular multimeter?
In addition to a full 1000V/20A/60MΩ True-RMS multimeter, the DM303 integrates a 500 kHz color graphical oscilloscope, fuel injector/relay driver, inductive ignition RPM meter, square/sine wave signal generator, and CAN-Bus/K-Line bus analyzer.
Can it display crankshaft, camshaft, and O2 sensor waveforms?
Yes! Oscilloscope mode graphs live voltage waveforms for CKP, CMP, O2, ABS, MAP/MAF, and PWM circuits.
What does the CAN-Bus / K-Line test do?
It checks data bus activity and voltage levels on CAN-H, CAN-L, and K-Line networks to diagnose module communication failures.
What waveforms can the signal generator output?
It outputs adjustable square waves (with selectable frequency and duty cycle) and adjustable-amplitude sine waves.
Are the inductive ignition clamp and hard case included?
Yes, the inductive clamp, 12V battery adapter, test probes, and blow-molded carrying case are all included.
What is the warranty period?
It comes with a 1-year official Otoeko warranty.
