AUTOOL EM385
Power and charging for your workshop
From stable power during ECU work to the right charging mode for battery care, AUTOOL EM385 brings everyday service tasks together on one control panel with Turkish menus.
Separate modes cover programming power, charging, battery restoration, vehicle display support and starting assistance.
Keep power readings in view during ECU work
While your programming equipment communicates with the ECU, EM385 supports the vehicle’s power supply. Follow the operation by monitoring voltage and current on the display.
The unit also features built-in cooling, physical controls and an emergency stop button.
Panel-controlled power support for your programming equipment.
Charge to suit the battery
Choose the right charging mode for your battery from standard lead-acid, flat-plate AGM, spiral-wound AGM and GEL options. Voltage and current are regulated automatically, and charging stops when complete.
Charge 12 V lead-acid batteries at up to 40 A in the vehicle or 20 A outside it. EFB batteries are charged outside the vehicle.
LiFePO4 (LFP) and NCM mode charges compatible 12 V batteries at up to 20 A. Lithium charging and lead-acid battery restoration are carried out with the battery removed from the vehicle.
Adjustable power for programming
Set the voltage for the service task and use the additional modes for different workshop needs.
The right voltage for the task
Set programming power between 9 and 16 V, or use fixed 14 V mode where appropriate.
Programming mode provides a short-duration maximum output of up to 150 A. Select the voltage required for the service task and monitor the readings on screen.
Display and starting support
During vehicle display use, up to 40 A of support is supplied as the load requires; maintenance charging continues in standby.
Mains-powered starting support provides a short-duration 400 A output for compatible 12 V vehicles.
Easy monitoring with Turkish menus

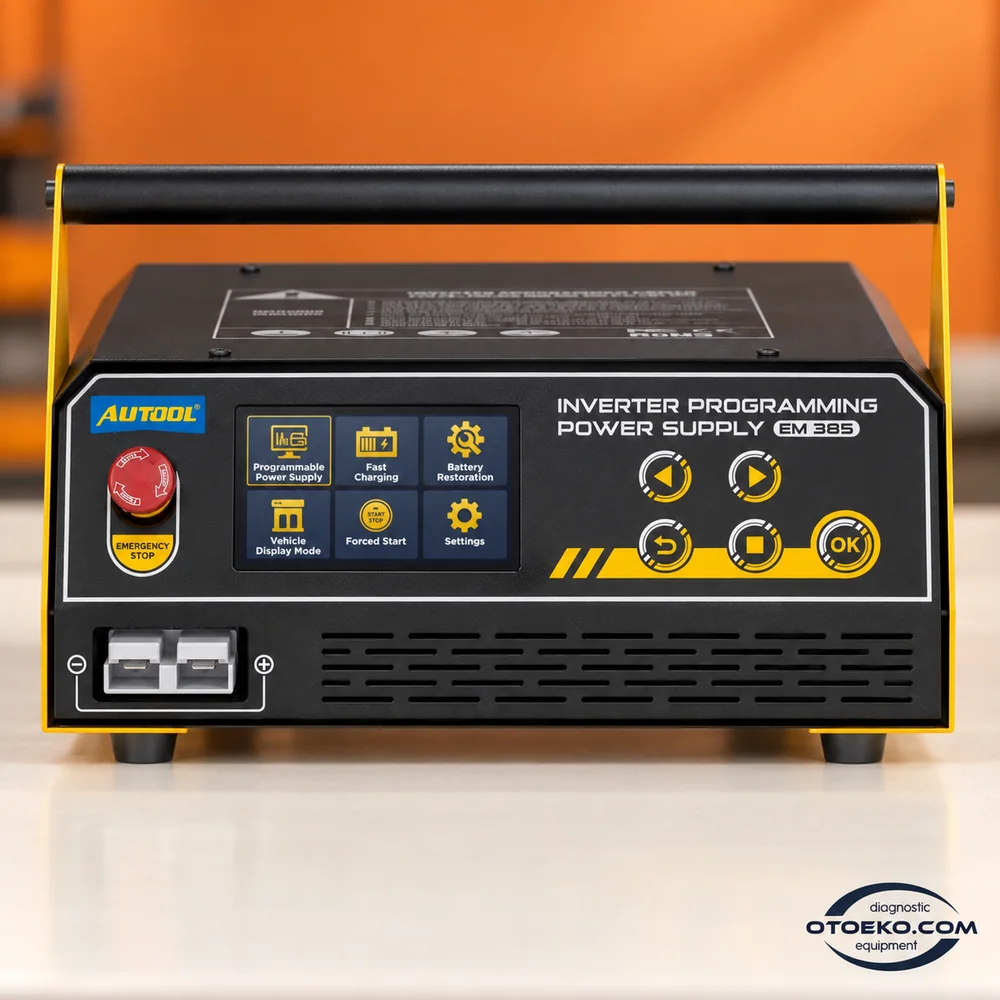

Manage each operation with the 4.3-inch color touchscreen and physical controls.
Connect
Keep ventilation openings clear. Prepare a grounded 220 V supply and secure the clamps to the correct battery terminals.
Choose the mode
Select the operation and battery type, and choose in-vehicle or out-of-vehicle charging where applicable.
Monitor the readings
Select the voltage required for the task, then monitor voltage, current and operating status.
Complete the operation
Maintain power until programming is complete. Stop the output and disconnect according to the manual.
EM385 technical specifications
Output ratings for each operating mode and key equipment details.
| Programming voltage | 9–16 V DC, adjustable |
|---|---|
| Fixed programming mode | 14 V DC |
| Maximum programming current | Up to 150 A; short-duration maximum output |
| Lead-acid charging | 12 V; up to 40 A in the vehicle, 20 A outside it |
| Supported lithium charging | 12 V / up to 20 A; LiFePO4 (LFP), NCM |
| Vehicle display support | Up to 40 A |
| Starting support | 12 V / short-duration 400 A |
| Rated input power | 1500 W |
| Model | AUTOOL EM385 |
|---|---|
| Product type | ECU programming power supply and battery charger |
| Mains input | 220 V AC |
| Display | 4.3-inch color touchscreen |
| Dimensions | 417 × 316 × 188 mm |
| Protection / insulation class | IP21S / F |
| Menu language | Turkish |
| Warranty | 1-year Otoeko warranty |
Explore AUTOOL EM385
See the unit and its control panel in the product video.
Connection equipment included
The main unit, battery clamp cable, mains cable and manual are included in the box.
- AUTOOL EM385 main unit
- Battery clamp cable
- Mains power cable
- User manual
Backed by Otoeko
The 220 V AUTOOL EM385 with Turkish menus comes with a 1-year Otoeko warranty.
Frequently asked questions
Which workshop tasks can I use EM385 for?
It offers separate modes for programming power, charging compatible batteries, battery restoration, vehicle display support and starting assistance.
Can I use it alongside my programming equipment?
EM385 supplies power while your interface and software handle ECU communication. Select the power settings according to the vehicle’s service procedure.
Does it have Turkish menus?
Yes. The supplied version has Turkish menus and can be operated using the touchscreen or physical controls.
Which lead-acid batteries can it charge?
Standard lead-acid, flat-plate AGM, spiral-wound AGM and GEL options are available. For EFB batteries, remove the battery and select out-of-vehicle charging.
Is there a lithium battery charging mode?
A separate mode is available for compatible LiFePO4 (LFP) and NCM batteries. Charging takes place outside the vehicle.
Does it run on a 220 V workshop supply?
Yes. The supplied version runs on 220 V AC mains power and requires a grounded electrical connection.
How do I use battery restoration mode?
Use this mode with compatible lead-acid batteries removed from the vehicle. Results depend on the battery’s physical condition and level of sulfation.
What is included, and how long is the warranty?
The main unit, battery clamp cable, mains cable and manual are included. The product comes with a 1-year Otoeko warranty.
