TURNKEY READY SET · WORKSTATION LAPTOP + PRE-INSTALLED ACTIVE SOFTWARE
CNH DPA5 (New Holland · Case IH · Steyr) Tractor & Equipment Diagnostic Interface + Pre-Configured Laptop Set
Skip hours of complex software setup; connect immediately with our pre-paired VCI and SSD Pre-Configured Business Workstation Laptop running CNH EST (Electronic Service Tool 9.10).
- Workstation Laptop Included
- CNH EST (Electronic Service Active
- Plug & Play Delivery
- 6M VCI / 3M PC Warranty
Engineered for Professional Workshop Demands
The CNH DPA5 + Laptop Hazır Set is built to deliver speed, accuracy, and stability in busy service bays.
Tractor & Combine Transmission Calibration
Calibrates clutch pack fill times and shuttle modulation across New Holland T5/T6/T7/T8 and Case IH Puma/Maxxum/Magnum transmissions.
FPT Engine & Aftertreatment Control
Performs injector IMA coding, compression tests, rail pressure tests, and DPF/SCR service on FPT F5C, NEF, and Cursor engines.
EDC Hitch, PTO & Suspended Axle Setup
Calibrates rear 3-point hitch position/draft sensors, electronic remote valves (EHR), PTO clutches, and Terraglide front axle suspension.

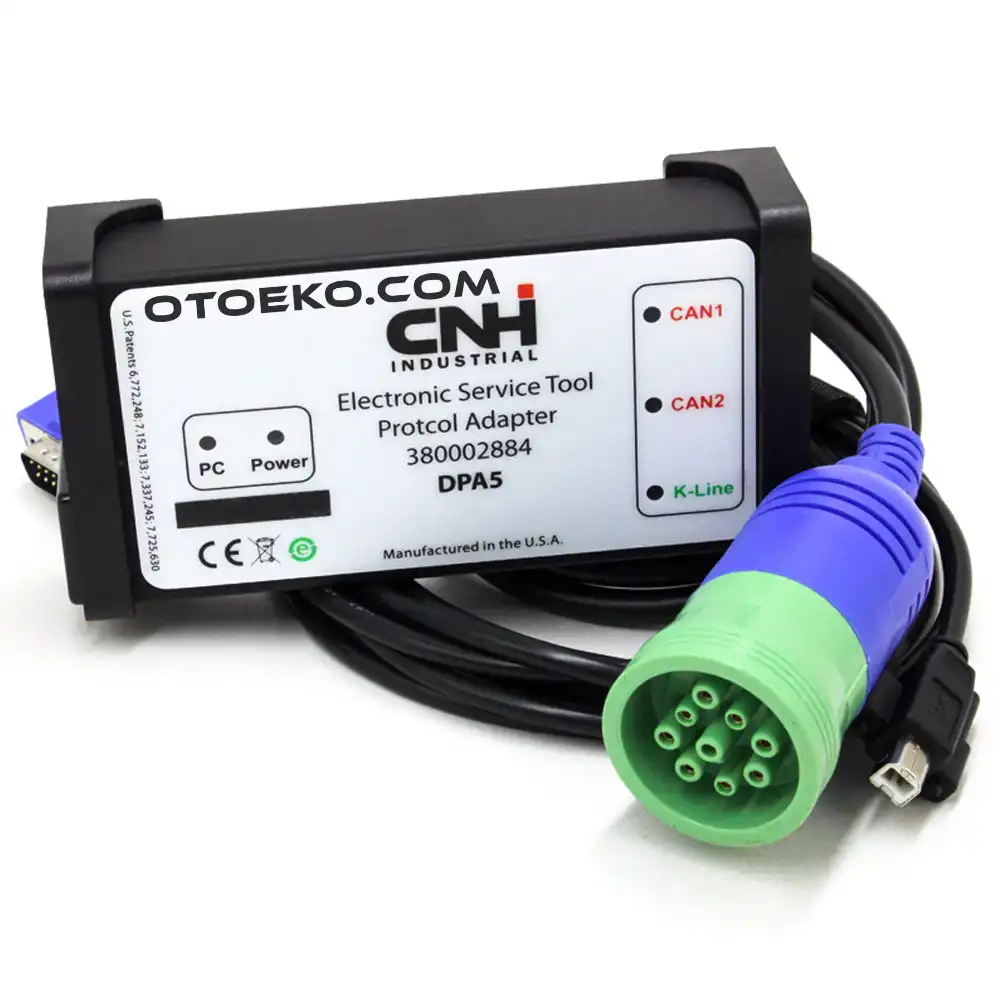

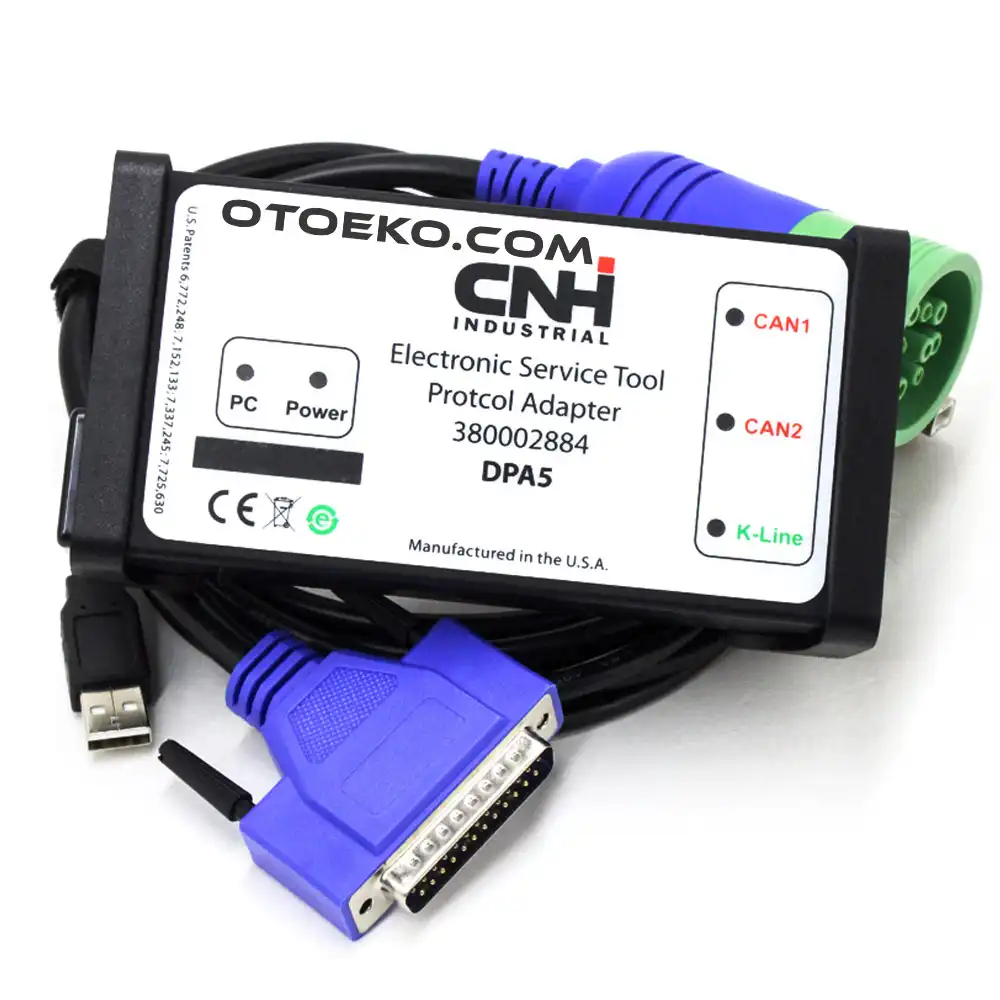

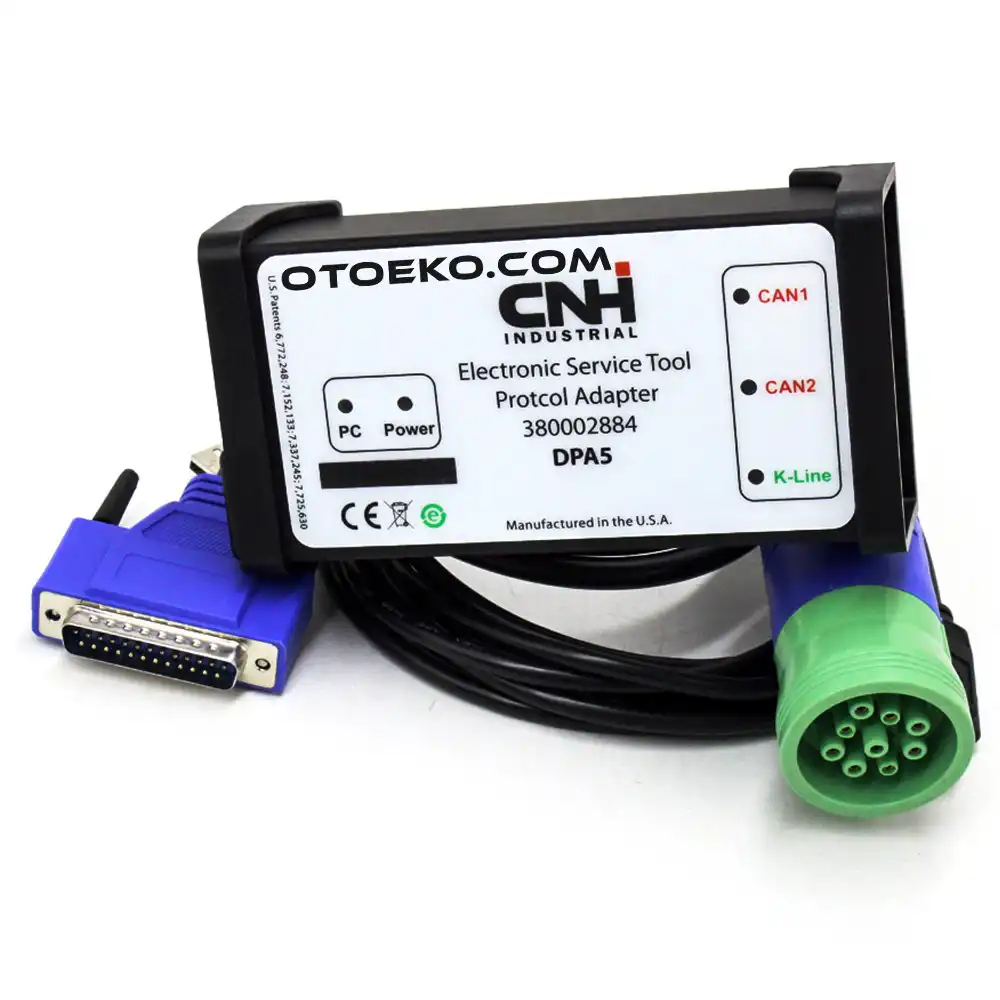

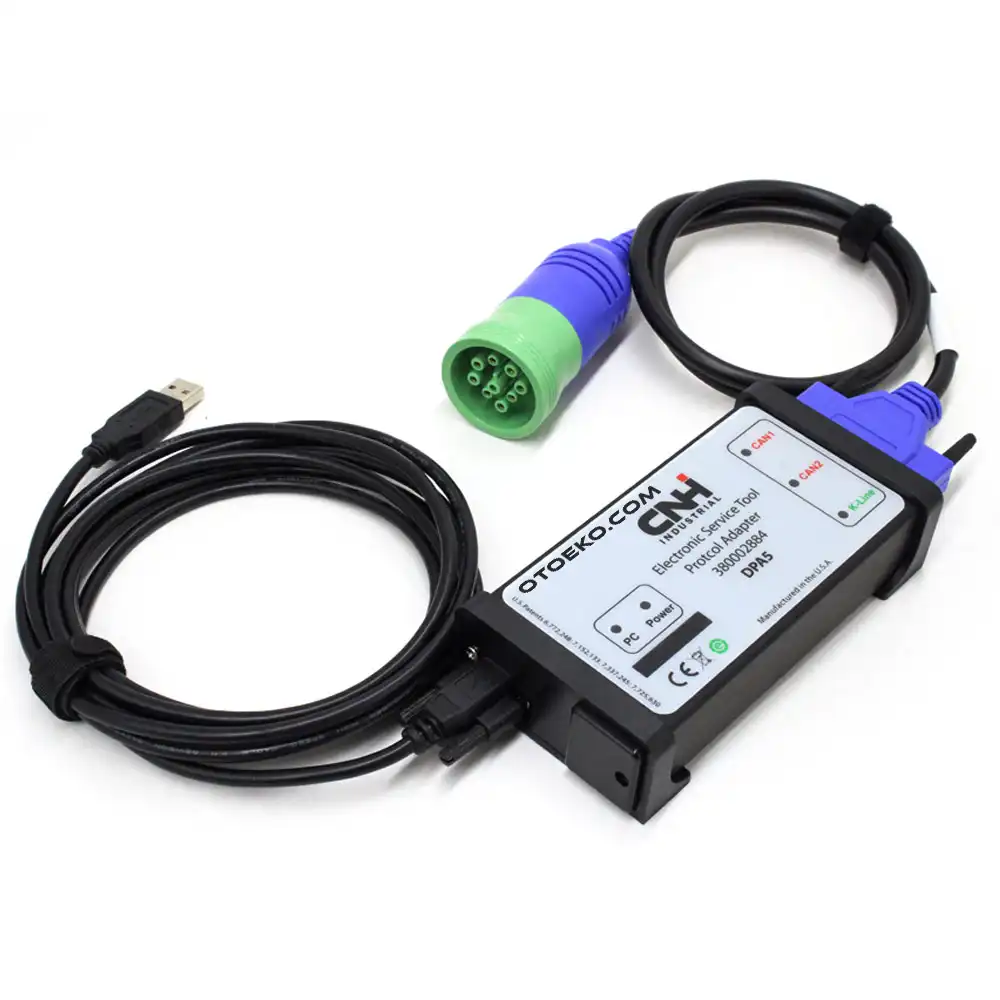

Rugged Rubber-Armored DPA5 Enclosure
Protected by a shock-absorbing rubber boot with 6 status LEDs and screw-locking DB26/USB connectors.
AGRICULTURAL EQUIPMENT (NEW HOLLAND · CASE IH · STEYR)
Tractors, Combines, Forage Harvesters & Sprayers
Full access to EDC, XCM, CCM, UCM, ICU, and Armrest controllers:
- AutoCommand (CVT), PowerCommand, RangeCommand, and ElectroCommand gearbox calibration
- CX, CR, and Axial-Flow combine header height, threshing drum, and sieve calibration
- Electronic Draft Control (EDC), EHR remote valves, and front axle suspension leveling
- SideWinder II / Multicontroller armrest joystick and potentiometer calibration
CONSTRUCTION EQUIPMENT (CASE CE · NEW HOLLAND CE · KOBELCO)
Backhoe Loaders, Excavators, Wheel Loaders & Telehandlers
Comprehensive diagnostics for B110B/B115B, Case 580/590/695 backhoes, CX excavators, and W-series loaders:
- FPT Tier 3, Tier 4A/4B, and Stage V engine fault diagnostics and injector coding
- Hydraulic pump proportional solenoid current calibration and pressure monitoring
- Powershuttle and Powershift transmission valve calibration
- DPF regeneration, SCR/AdBlue heater testing, and NOx sensor verification
DUAL-CAN CNH HARNESS & RP1210 ARCHITECTURE
Reads Both Engine CAN1 and Proprietary CNH Chassis CAN2
Unlike generic 9-pin cables that only read engine CAN, the CNH 380002884 harness accesses all chassis controllers:
- Dedicated CNH 9-Pin Deutsch cable wired for both J1939 CAN1 and CNH CAN2
- Includes 16-Pin OBD2 adapter cable and screw-locking industrial USB cable
- TMC RP1210A/B/C compliant for cross-compatibility with Cummins INSITE and Allison DOC
- Direct operation on 12V agricultural and 24V construction electrical systems
Detailed Visual & Technical Showcase
Close-up details and application views of the CNH DPA5 + Laptop Hazır Set.
Technical Specifications & System Parameters
Complete manufacturer-verified technical data and operating ranges.
| Hardware Model | CNH Dearborn Protocol Adapter 5 (DPA5) |
|---|---|
| Reference P/N | 380002884 |
| Compatible Software | CNH Electronic Service Tool (EST 9.x+) & eTIM |
| Supported Brands | New Holland, Case IH, Case CE, Steyr, Kobelco, Flexi-Coil, FPT |
| Supported Protocols | Dual CAN (J1939 / ISO15765), J1708/J1587, ISO9141, KWP2000, ALDL |
| API Standard | TMC RP1210A / RP1210B / RP1210C & SAE J2534 |
| PC Interface | Screw-Locking Industrial USB 2.0 |
|---|---|
| Equipment Connectors | CNH 9-Pin Deutsch Cable + 16-Pin OBD2 Cable |
| Operating Voltage | 9V – 32V DC (12V Tractor & 24V Construction) |
| OS Compatibility | Windows 10 & Windows 11 (64-Bit) |
| Origin | China (Industrial Grade A+ Dual-CAN PCB) |
| Warranty | 6-Month Official Otoeko Warranty |
Workshop Application & Operating Guide
Recommended 4-step standard procedure for accurate results.
Connect to 9-Pin / OBD2 Port
Attach the CNH 9-Pin Deutsch or 16-Pin OBD2 cable to the cab diagnostic socket.
Connect USB & Key ON
Plug the locking USB cable into your laptop, turn the key ON, and verify the Power/CAN LEDs on the DPA5.
Select Machine in CNH EST
Launch CNH Electronic Service Tool (EST), select the vehicle model, and scan all installed controllers.
Run Calibrations & Tests
Perform transmission clutch calibration, hitch setup, injector coding, or DPF regeneration.
Technical Capabilities & Operational Advantages
Key engineering advantages for professional workshop diagnostics.
Core Workshop Requirements
- Generic J1939 adapters cannot see CNH's secondary CAN bus for transmission and hydraulic ECUs.
- Universal scanners cannot calibrate ElectroCommand, PowerCommand, or AutoCommand gearboxes.
- No support for combine harvester header and sieve calibrations.
- Cannot interface with CNH EST interactive wiring diagrams.
With CNH DPA5 + Laptop Hazır Set
- True CNH 380002884 Dual-CAN architecture reads both engine (CAN1) and chassis/transmission (CAN2).
- Executes factory transmission, 3-point hitch, PTO, and axle calibrations across New Holland, Case, and Steyr.
- Full diagnostics for tractors, combines, backhoes, and excavators.
- RP1210 compatibility allows use with Cummins, Perkins, and Allison software.
Package Contents — Ready for the Workshop
Complete kit inspected prior to dispatch.

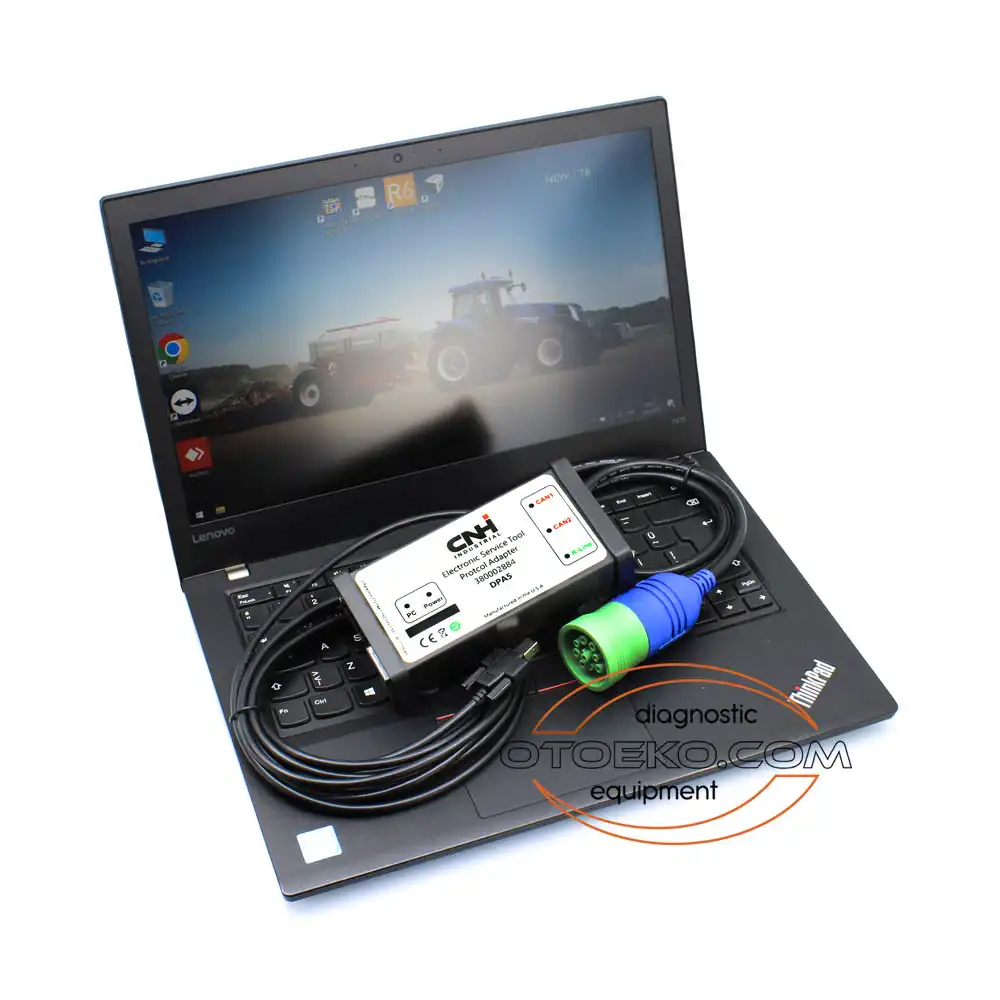

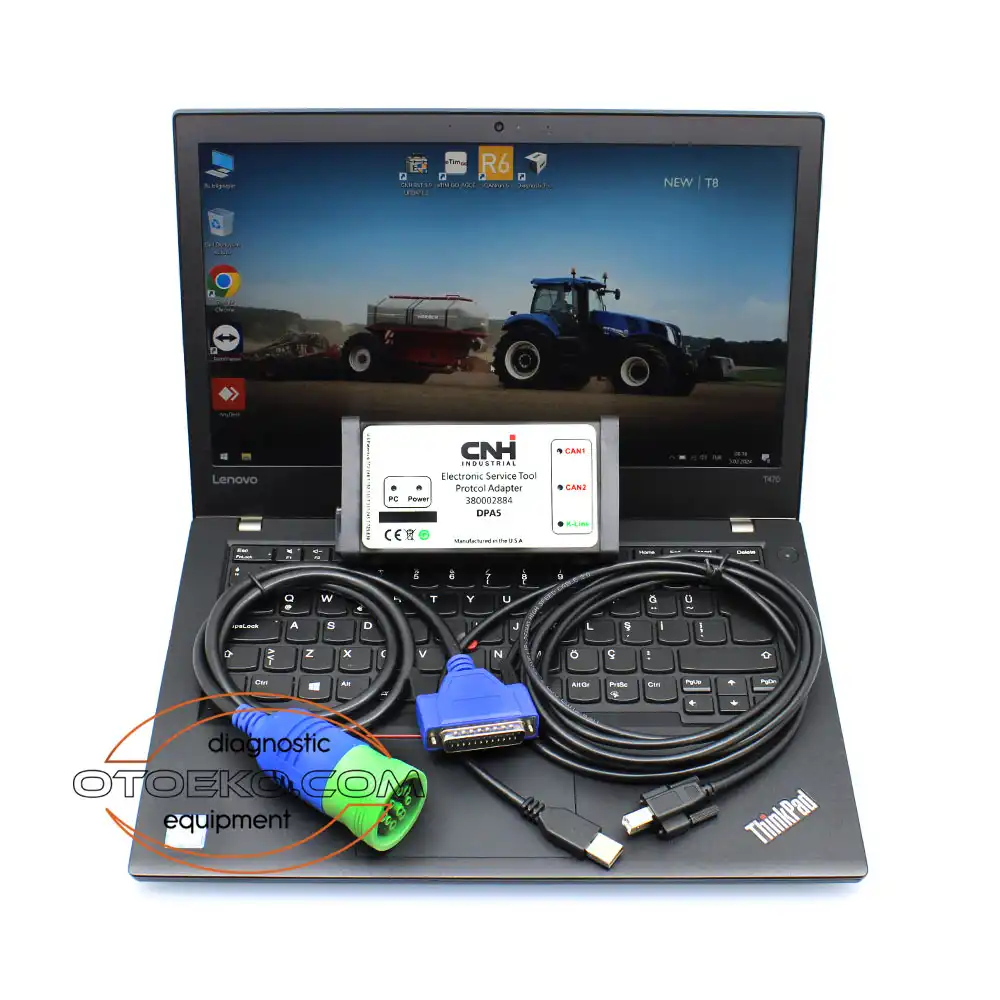

- 1 × Pre-Configured Business Workstation Laptop (with CNH EST (Electronic Service Tool 9.10) Pre-Installed, Active & Configured)
- 1 × Original AC Power Adapter & Charging Cord

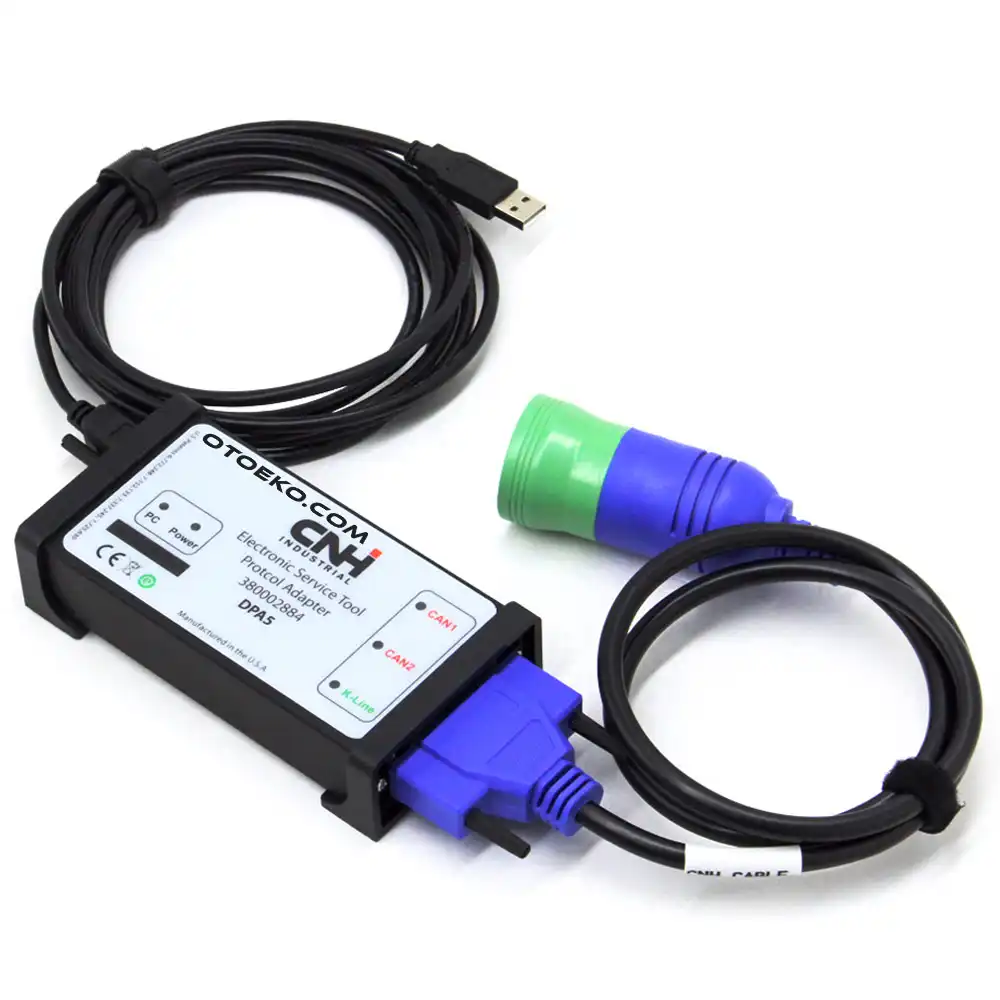

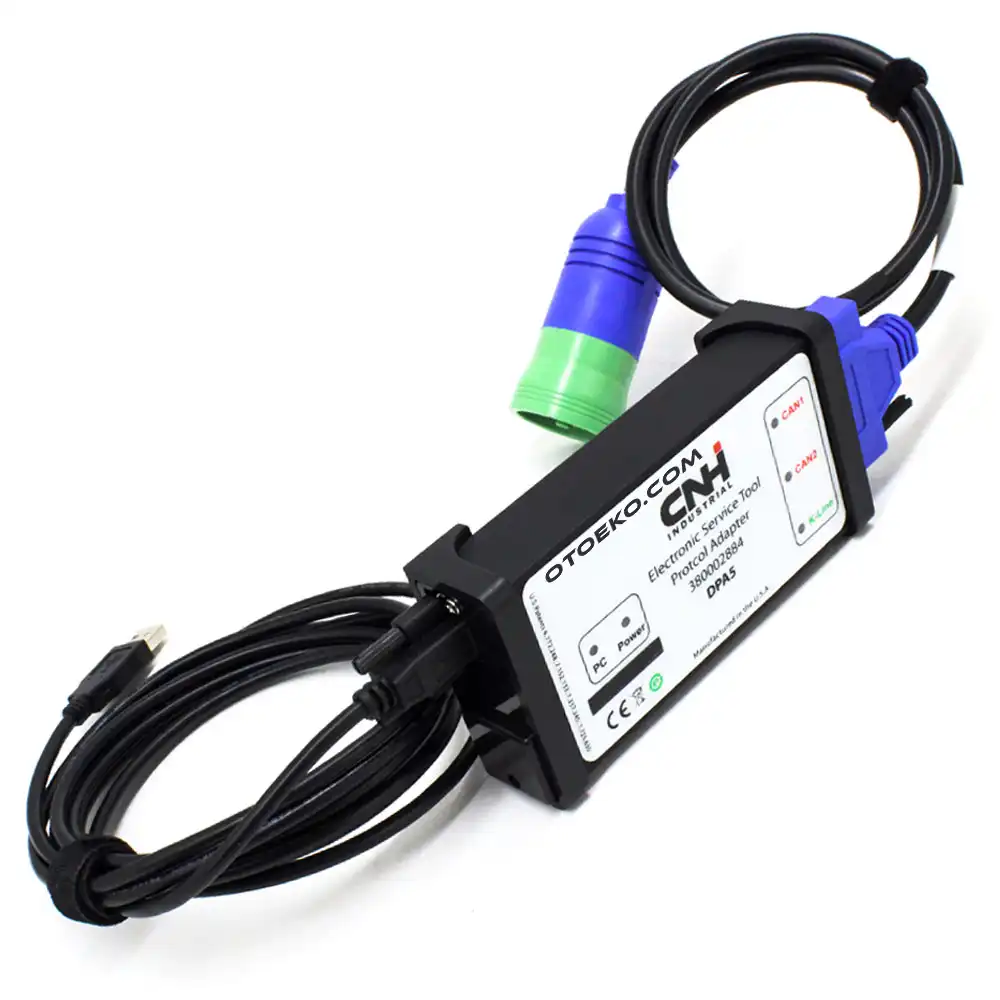

- 1 × CNH Dearborn Protocol Adapter 5 (DPA5 · 380002884) Main Unit
- 1 × CNH 9-Pin Deutsch + 16-Pin OBD2 Heavy-Duty Cable Set
- 1 × Screw-Locking USB PC Cable
- 1 × Heavy-Duty Field Carrying Case (Note: CNH EST software not included, sold separately)
6-Month VCI & 3-Month Second-Hand PC Warranty
In the CNH DPA5 + Laptop Hazır Set turnkey bundle, the VCI diagnostic interface is backed by a 6-month warranty against manufacturing defects, and the included second-hand laptop/tablet carries a 3-month Otoeko warranty (Laptop images are representative).
Frequently Asked Questions
Key technical questions from technicians and workshops about the CNH DPA5 + Laptop Hazır Set.
Which brands are supported by CNH DPA5?
Supports New Holland (Ag & Construction), Case IH, Case CE, Steyr, Kobelco, Flexi-Coil, and FPT industrial engines.
Can it calibrate New Holland and Case tractor transmissions?
Yes, via CNH EST it calibrates ElectroCommand, RangeCommand, PowerCommand, and AutoCommand (CVT) transmissions.
Does it work on backhoe loaders and excavators?
Yes, it supports all CNH Construction equipment including B110B/B115B, Case 580/590/695 backhoes, and CX excavators.
Why is Dual-CAN important for CNH tractors?
CNH tractors place transmission, hydraulic, and armrest controllers on a secondary CAN bus (CAN2) that standard single-CAN adapters cannot read.
Is CNH EST software included?
This listing includes the DPA5 hardware and cable kit; CNH EST software and laptop bundles are available separately.
What is the warranty period?
Backed by a 6-month official Otoeko hardware warranty.
