OEM-GRADE DIAGNOSTIC HARNESS · OEM P/N 4919797 · FULL PINOUT
Cummins INLINE 6 Data Link Adapter 16-Pin OBD-II Main Diagnostic Cable (P/N 4919797)
Replace worn or intermittent cables on your Cummins INLINE 6 Data Link Adapter (P/N 2892092) with a shielded, full-pin industrial harness built for reliable workshop diagnostics.
- OEM P/N 4919797
- Full-Pin Pure Copper
- Locking Connector
- 100% Continuity Tested
Engineered for Professional Workshop Demands
The Cummins INLINE 6 OBD2 Ana Kablosu (4919797) is built to deliver speed, accuracy, and stability in busy service bays.
Authentic 1:1 OEM Full Pinout
Unlike budget cables with missing wires, every data, ignition sense, and power pin required for SAE J1939 High-Speed CAN · SAE J1708 / J1587 · ISO 15765 CAN is fully populated.
EMI/RFI Shielded Pure Copper Conductors
Multi-strand oxygen-free copper with foil shielding blocks electromagnetic interference during high-speed CAN and USB communication.
Locking Connectors with Strain Relief
Moulded strain-relief collars on both the 25-Pin (DB25) Vidalı Kilitli INLINE 6 Ana Ünite Konnektörü and 16-Pin J1962 Ağır Vasıta & Ticari OBD-II Erkek Soket ends prevent internal wire fatigue.
Safe ECU Flashing & Calibration
Maintains rock-solid voltage and signal integrity during programming sessions in Cummins INSITE · Calterm · PowerSpec.
UNINTERRUPTED DIAGNOSTIC LINK
Essential Replacement Harness for Cummins INLINE 6 Data Link Adapter (P/N 2892092)
Over 80% of 'VCI Not Found' or 'Communication Error' faults are caused by damaged cables. Upgrading to this OEM-spec harness delivers:
- Instant, stable connection to all ECUs across Cummins ISB, QSB, ISC, ISL, ISX Motorlu Kamyon, Otobüs ve Dodge Ram / Ford Ticari Araçlar
- VCI-side termination: 25-Pin (DB25) Vidalı Kilitli INLINE 6 Ana Ünite Konnektörü
- Vehicle / PC termination: 16-Pin J1962 Ağır Vasıta & Ticari OBD-II Erkek Soket
- Full protocol pass-through: SAE J1939 High-Speed CAN · SAE J1708 / J1587 · ISO 15765 CAN
WORKSHOP DURABILITY
Oil, Heat & Crush Resistant Industrial Jacket
Built to survive daily plug-in cycles on the workshop floor:
- Gold/nickel-plated terminal pins resist oxidation and contact wear
- High-flexibility elastomer jacket remains supple in cold weather
- Reference part specification: OEM P/N 4919797
- 100% pin-to-pin continuity tested prior to dispatch
ARCHITECTURE & SYSTEM COMPATIBILITY
Cummins INLINE 6 OBD2 Ana Kablosu (4919797) Software, Protocol & ECU Coverage
Hardware and operating parameters engineered for uninterrupted dealer-level communication:
- Full Pinout: Matches OEM P/N 4919797 OEM wiring specification
- Locking Fit: Vibration-resistant connectors prevent dropouts
- Pure Copper: High-speed CAN/DoIP/USB transmission without packet loss
- Cummins INLINE 6 Data Link Adapter (P/N 2892092)

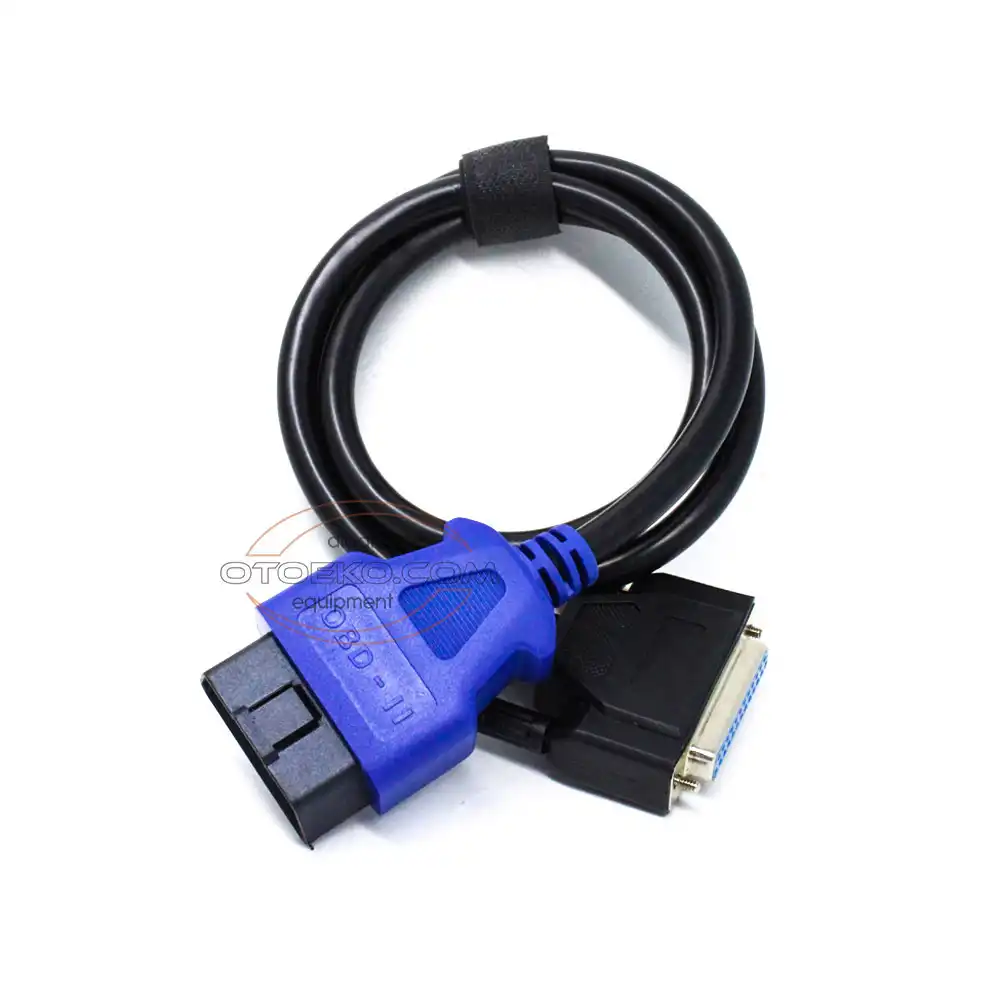

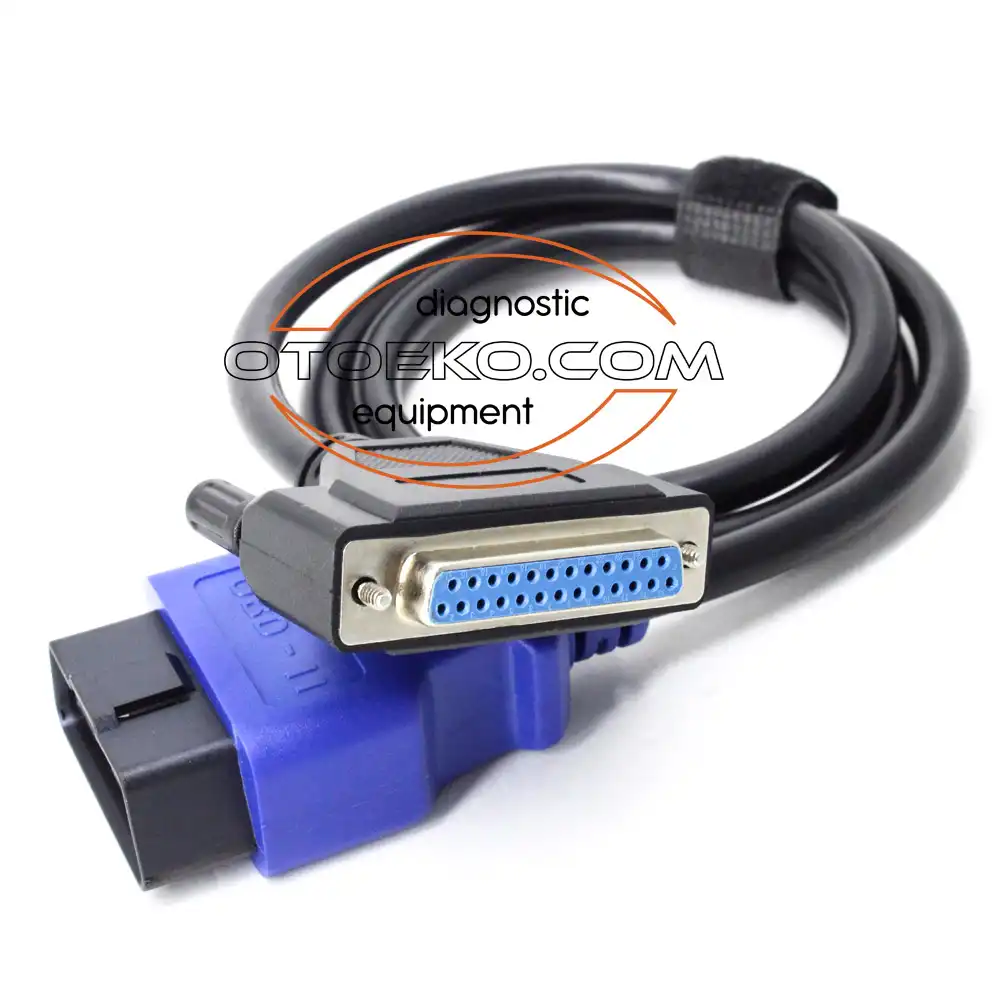

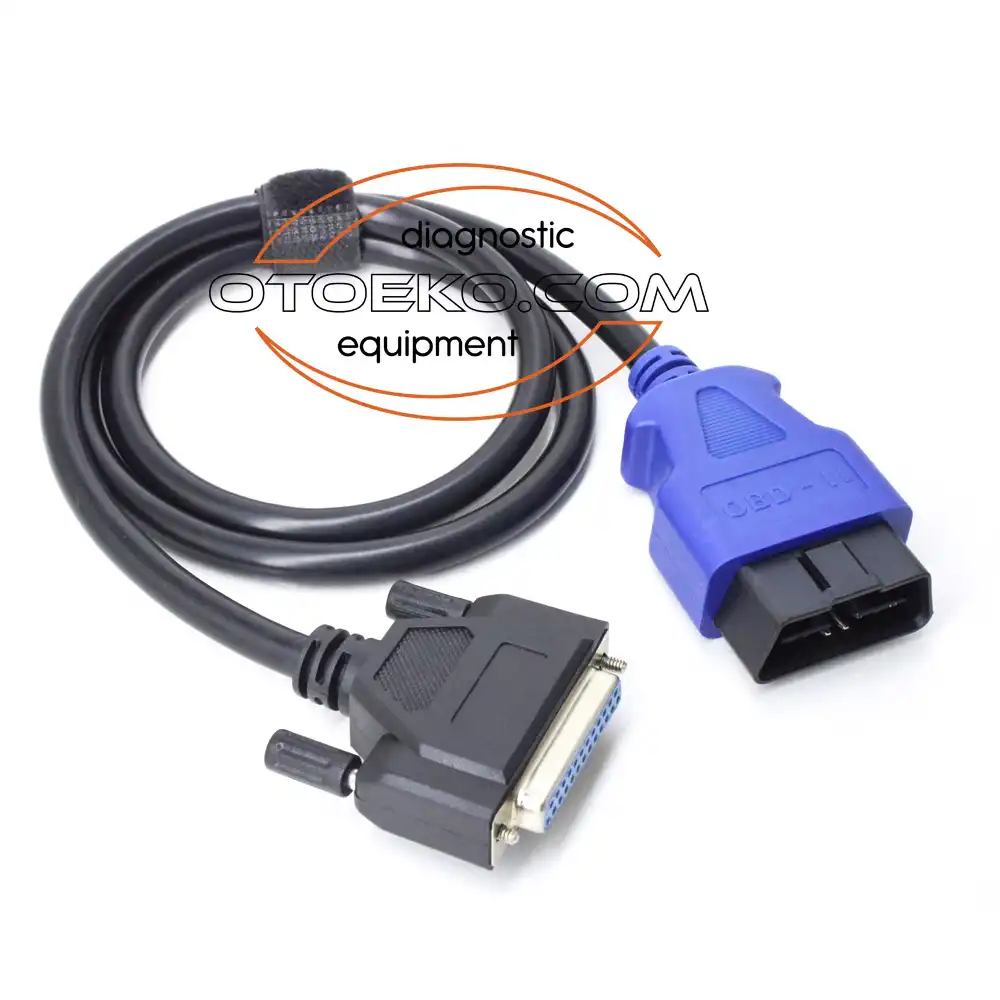

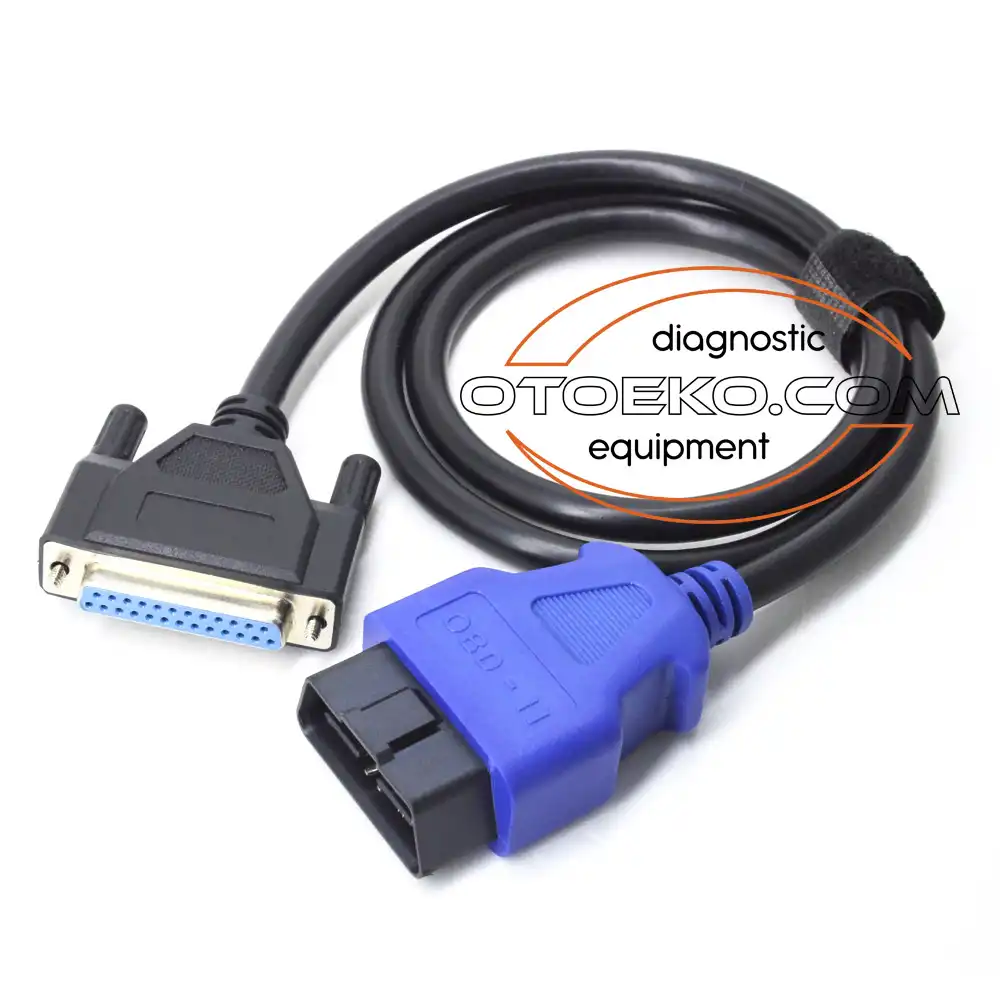

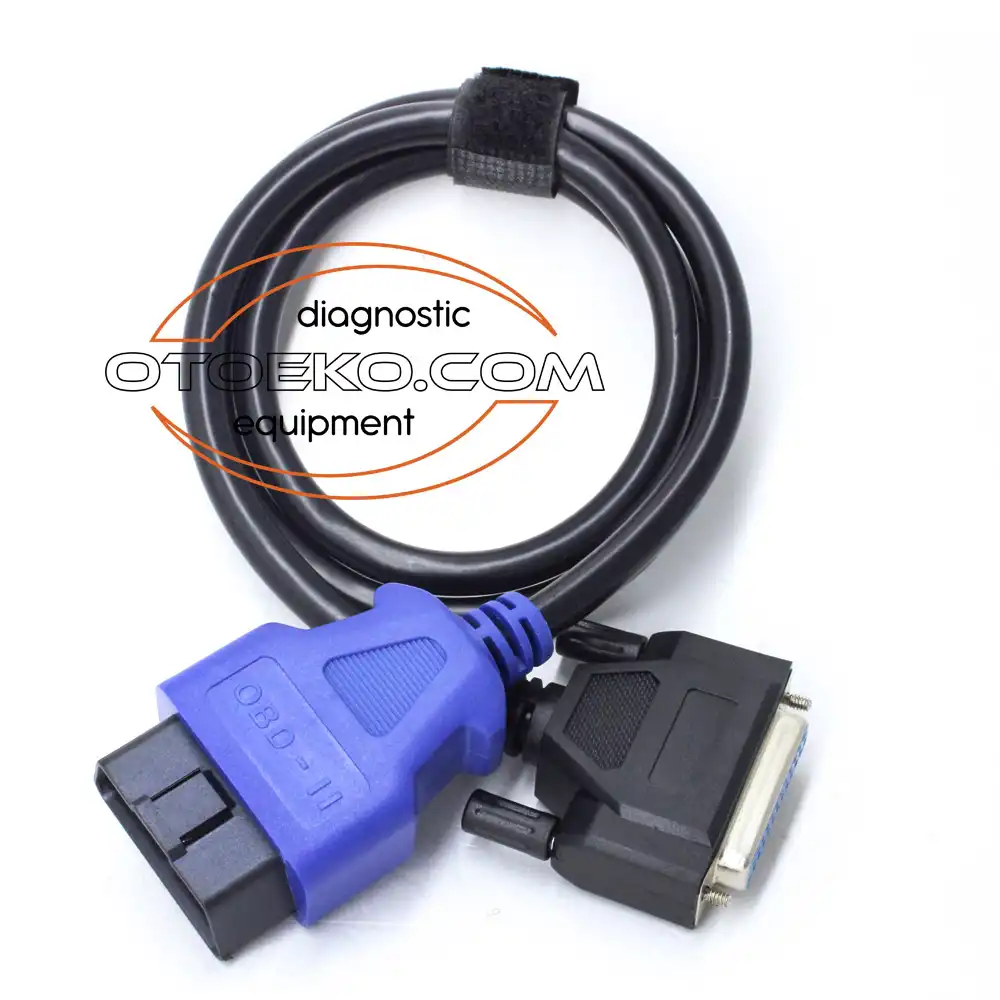

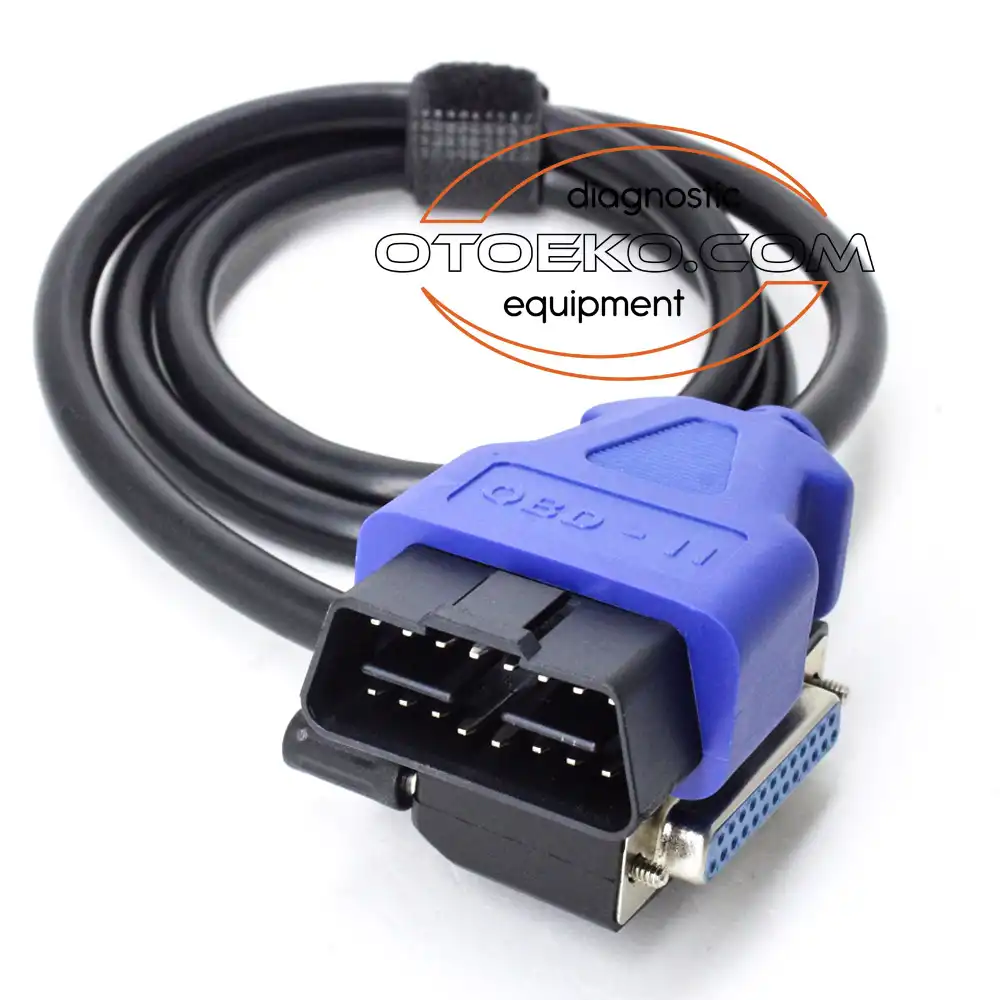

Detailed Visual & Technical Showcase
Close-up details and application views of the Cummins INLINE 6 OBD2 Ana Kablosu (4919797).
Technical Specifications & System Parameters
Complete manufacturer-verified technical data and operating ranges.
| Product Model | Cummins INLINE 6 Data Link Adapter 16-Pin OBD-II Main Diagnostic Cable (P/N 4919797) |
|---|---|
| Reference Part No | OEM P/N 4919797 |
| Compatible VCI Unit | Cummins INLINE 6 Data Link Adapter (P/N 2892092) |
| Compatible Software | Cummins INSITE · Calterm · PowerSpec |
| VCI Side Connector | 25-Pin (DB25) Vidalı Kilitli INLINE 6 Ana Ünite Konnektörü |
| Vehicle / PC Connector | 16-Pin J1962 Ağır Vasıta & Ticari OBD-II Erkek Soket |
|---|---|
| Supported Protocols | SAE J1939 High-Speed CAN · SAE J1708 / J1587 · ISO 15765 CAN |
| Vehicle / Equipment Range | Cummins ISB, QSB, ISC, ISL, ISX Motorlu Kamyon, Otobüs ve Dodge Ram / Ford Ticari Araçlar |
| Quality & Warranty | No Warranty on Consumable Cables (100% Tested Before Dispatch) |
Workshop Application & Operating Guide
Recommended 4-step standard procedure for accurate results.
Inspect Connector Pins
Verify both sockets are clean and free of bent pins or debris before connecting.
Lock VCI Connector
Seat the 25-Pin (DB25) Vidalı Kilitli INLINE 6 Ana Ünite Konnektörü firmly onto your VCI unit and tighten any locking screws.
Attach Vehicle / PC Plug
Connect the 16-Pin J1962 Ağır Vasıta & Ticari OBD-II Erkek Soket and confirm the VCI power/status LEDs illuminate.
Disconnect by Connector Body
Always grasp the moulded connector body rather than pulling on the cable jacket.
Package Contents — Ready for the Workshop
Complete kit inspected prior to dispatch.
- 1 × Cummins INLINE 6 Data Link Adapter 16-Pin OBD-II Main Diagnostic Cable (P/N 4919797) (OEM P/N 4919797)
- 1 × Protective Anti-Static Bag (100% Continuity Tested)
100% Pin Continuity & Quality Control Assurance
Every Cummins INLINE 6 OBD2 Ana Kablosu (4919797) harness is 100% continuity- and isolation-tested on the Otoeko test bench prior to dispatch (Consumable cables carry no warranty against physical wear or strain).
Frequently Asked Questions
Key technical questions from technicians and workshops about the Cummins INLINE 6 OBD2 Ana Kablosu (4919797).
Which diagnostic interface does this cable fit?
It is specifically engineered for Cummins INLINE 6 Data Link Adapter (P/N 2892092).
Are all internal pins populated?
Yes, it features a complete 1:1 OEM pinout supporting SAE J1939 High-Speed CAN · SAE J1708 / J1587 · ISO 15765 CAN.
Will this fix intermittent connection drops?
Yes, if your existing cable has internal wire fatigue or loose pins, replacing it restores stable VCI communication.
Is it safe for ECU programming?
Yes, the shielded pure copper conductors and locking connectors ensure uninterrupted data transfer.
Which vehicles are supported?
Supports Cummins ISB, QSB, ISC, ISL, ISX Motorlu Kamyon, Otobüs ve Dodge Ram / Ford Ticari Araçlar.
What is the warranty policy on cables?
Diagnostic cables are consumable workshop items and carry no warranty against physical wear, but every unit is 100% continuity-tested prior to shipping.
