AUTOMOTIVE ELECTRICAL TESTER · 6V - 12V - 24V · CR-V STEEL PROBE · 3W TEST LAMP

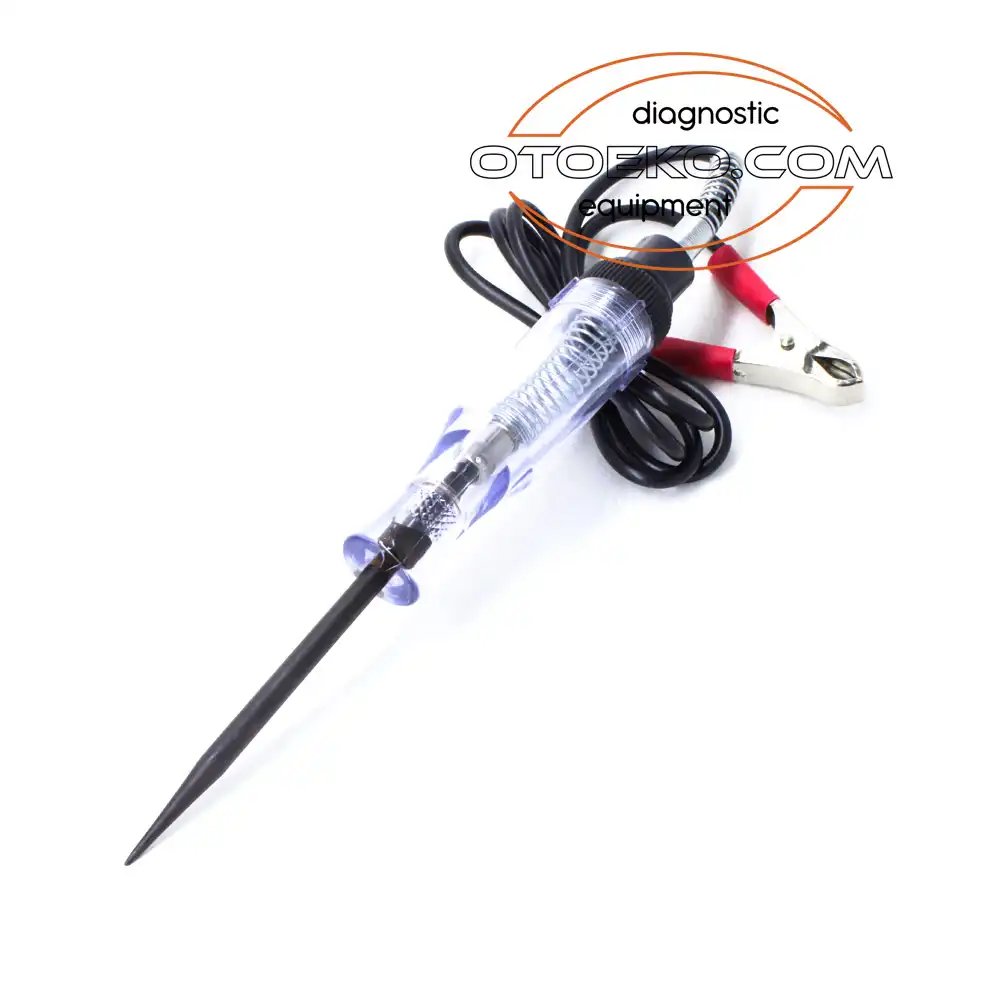

6V - 24V Automotive Electrical Circuit & Fuse Tester Probe (Chrome-Vanadium Steel Tip Test Light)
Pinpoint blown fuses, broken wiring, lighting faults, and socket issues in seconds across 6V, 12V, and 24V vehicle electrical systems.
- 6V - 12V - 24V Range
- Cr-V Steel Needle Tip
- 3W Indicator Lamp
- 96 cm Lead & 20A Clip
Engineered for Professional Workshop Demands
The 6V - 24V Oto Elektrik Devre Tesisatı Kontrol Kalemi (Cr-V Çelik Problu) is built to deliver speed, accuracy, and stability in busy service bays.
Wide 6V, 12V & 24V DC Voltage Range
Tests everything from 6V motorcycle circuits and 12V passenger cars to 24V commercial trucks, buses, trailers, and marine electrical systems with a single tool.
8.3 cm Chrome-Vanadium (Cr-V) Needle Probe
Constructed from hardened carbon Chrome-Vanadium steel that resists bending and corrosion while easily contacting narrow connector pins and fuse test points.
Bright 3-Watt Built-In Indicator Bulb
Housed inside the transparent ABS handle, the 3W test lamp illuminates clearly whenever voltage is present, even in bright workshop lighting.
96 cm Flexible Cable & 20A Ground Clamp
Provides ample reach from the battery negative terminal or chassis ground to under-dash fuse panels and exterior lighting harnesses.
APPLICATIONS & CIRCUIT DIAGNOSTICS

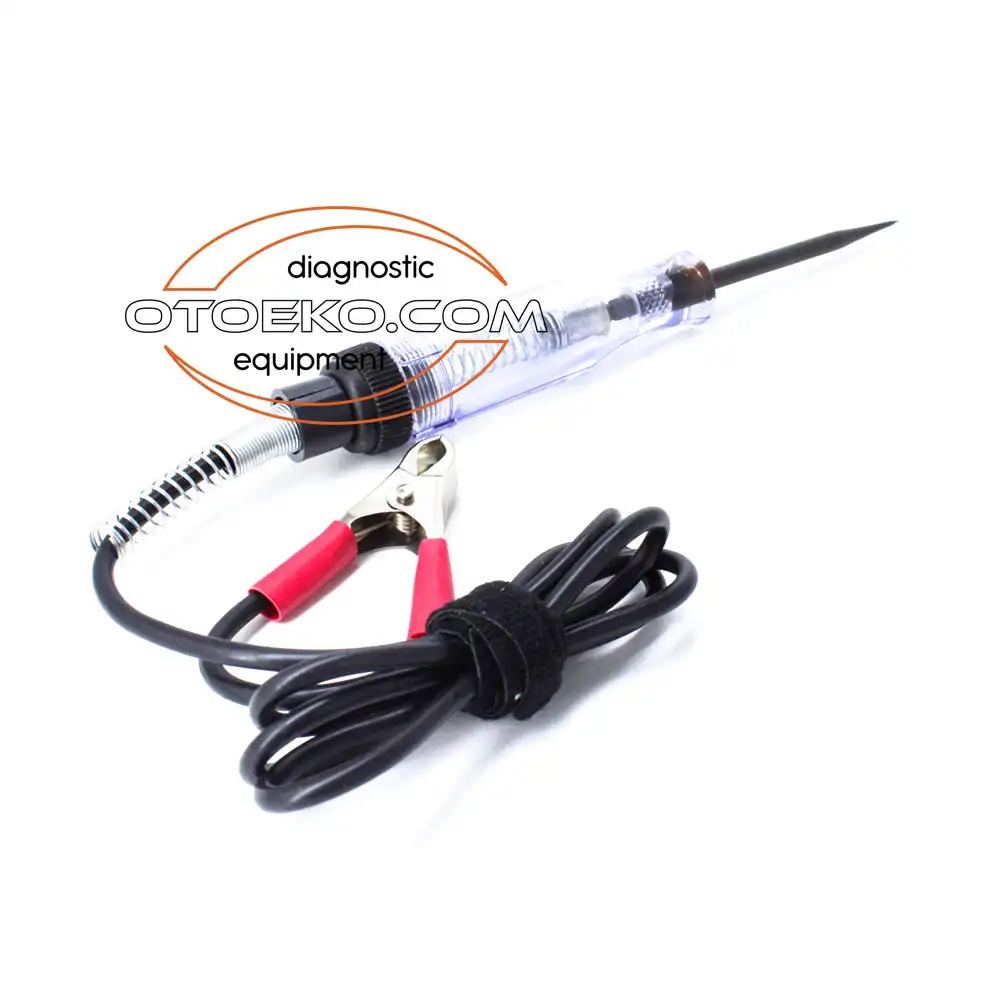

Rapid Troubleshooting Across Vehicle Wiring Harnesses
Essential electrical checks where physical voltage verification is required:
- Fast Fuse Testing: Touch both top test tabs of blade fuses without removing them from the fuse box to immediately spot blown fuses
- Lighting & Trailer Sockets: Verify power at headlights, brake lights, turn signals, reverse lights, and 7-pin/13-pin trailer connectors
- Broken Wire & Socket Tracing: Test starter trigger wires, horn circuits, cooling fan switches, fuel pump feeds, and door boot harnesses
- Accessory Installation: Quickly identify constant +12V (B+) and ignition-switched +12V (ACC) wires when installing stereos, dashcams, or sensors
BUILD QUALITY & ERGONOMIC DESIGN

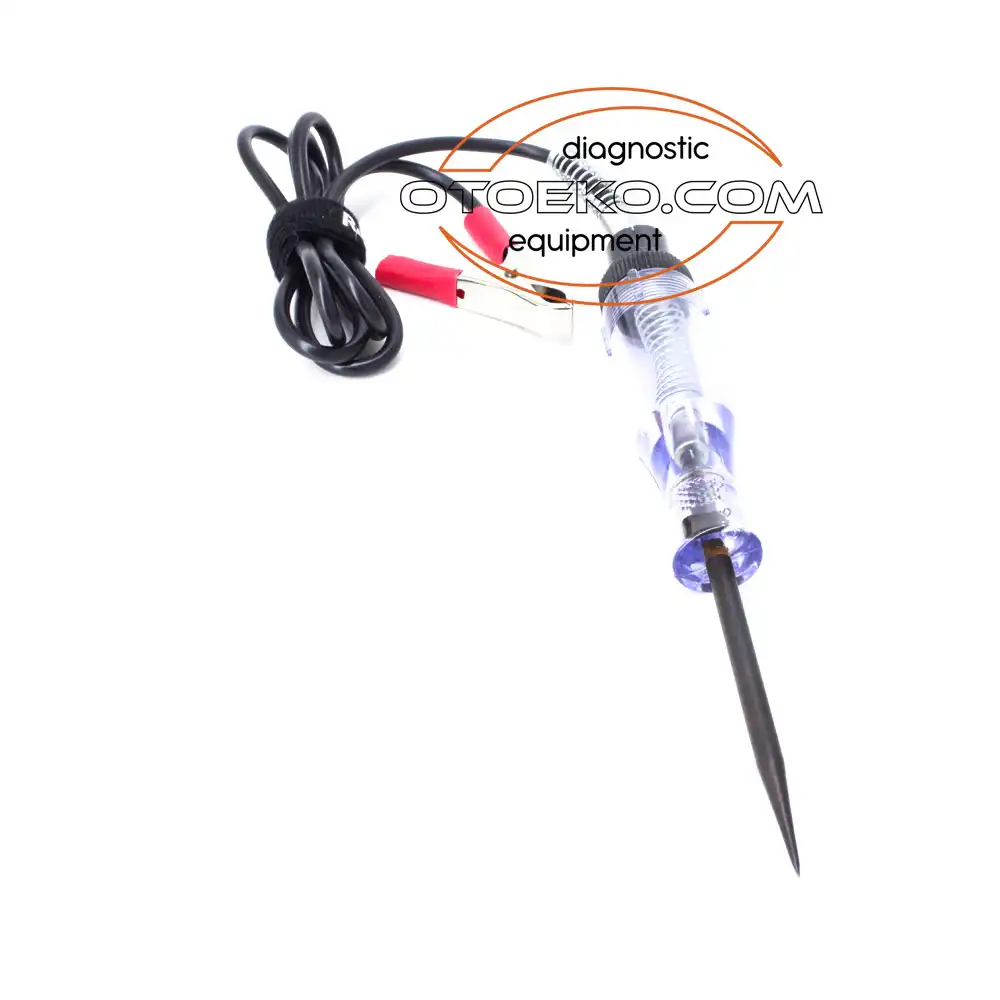

Workshop-Grade Materials for Daily Use
Engineered for durability and safe handling:
- Insulated ABS Handle: 17.3 cm screwdriver-shaped impact-resistant transparent ABS handle for a secure grip
- Chrome-Vanadium Steel Probe: 8.3 cm sharpened conductive tip with protective safety cap
- Strain-Relief Spring & 20A Clamp: Flexible spring guard at the handle exit prevents wire fatigue
SAFE OPERATION GUIDELINES

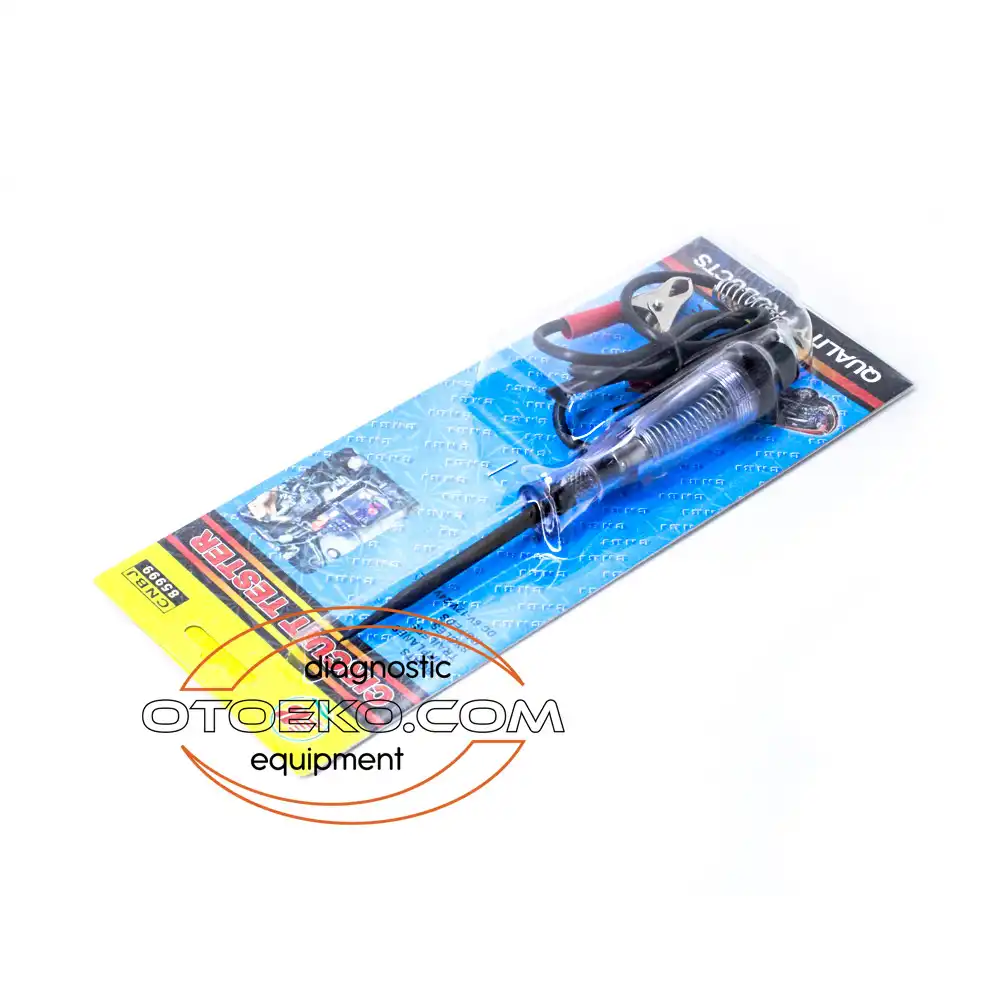

How to Use the 6V-24V Circuit Tester
Simple steps for accurate and safe circuit testing:
- Connect Ground Clamp: Attach the 20A alligator clip to the battery negative (-) terminal or a clean bare-metal chassis ground.
- Probe the Target Circuit: Touch the steel needle tip to the fuse tab, connector pin, or wire; the 3W bulb lights up when 6V-24V DC power is present.
- Safety Advisory: Designed strictly for 6V-24V DC low-voltage vehicle systems; never use on 110V/220V AC household mains.
Detailed Visual & Technical Showcase
Close-up details and application views of the 6V - 24V Oto Elektrik Devre Tesisatı Kontrol Kalemi (Cr-V Çelik Problu).
Technical Specifications & System Parameters
Complete manufacturer-verified technical data and operating ranges.
| SKU | OTO0116 |
|---|---|
| Product Type | Automotive Electrical Circuit Tester Probe |
| Voltage Range | 6V - 24V DC (6V / 12V / 24V Systems) |
| Probe Material | Carbon Chrome-Vanadium (Cr-V) Steel |
| Handle Material | High-Quality Insulated ABS Plastic |
| Indicator Bulb | Built-In 3-Watt Test Bulb |
| Clamp Capacity | 20-Amp Alligator Ground Clip |
| Handle Length | 17.3 cm |
|---|---|
| Steel Probe Length | 8.3 cm (Needle Tip) |
| Cable Length | Approx. 96 cm Flexible Lead |
| Compatible Vehicles | Cars, Trucks, Trailers, Motorcycles, Boats |
| Primary Function | Fuse, Lighting, Socket & Harness Voltage Testing |
| Warranty Period | 6-Month Official Otoeko Warranty |
| Quality Inspection | Tested for bulb illumination and continuity |
Workshop Application & Operating Guide
Recommended 4-step standard procedure for accurate results.
Attach Ground Clip
Clip the 20A alligator clamp onto the vehicle's negative (-) battery post or a clean metal chassis ground.
Touch Fuse or Connector Pin
Place the 8.3 cm Chrome-Vanadium needle probe onto the fuse test point or socket terminal.
Check 3W Indicator Light
If 6V-24V power is present, the 3W handle bulb illuminates; if only one side of a fuse lights up, the fuse is blown.
Store With Protective Cap
Disconnect the ground clamp after testing and place the protective cap over the needle tip.
Technical Capabilities & Operational Advantages
Key engineering advantages for professional workshop diagnostics.
Core Workshop Requirements
- Flimsy testers with short leads that cannot reach from chassis ground to the fuse panel
- Soft metal probes that bend easily or corrode in workshop environments
- 12V-only bulbs that burn out immediately when testing 24V trucks or trailers
- Pulling fuses out one by one with pliers just to find a blown circuit
With 6V - 24V Oto Elektrik Devre Tesisatı Kontrol Kalemi (Cr-V Çelik Problu)
- Generous 96 cm flexible cable and 20-Amp ground clamp for easy reach
- Hardened 8.3 cm Chrome-Vanadium steel needle probe and 17.3 cm ABS handle
- Full 6V to 24V DC compatibility across motorcycles, cars, trucks, and boats
- Instant in-place fuse and socket testing without removing components
Package Contents — Ready for the Workshop
Complete kit inspected prior to dispatch.
- 1 × 6V - 24V Automotive Electrical Circuit Tester Probe (96 cm Cable & 20A Clamp)
- 1 × Pre-Installed 3W Indicator Bulb
- Otoeko Quality Inspection & Corporate Invoiced Delivery (6-Month Warranty)
6 Months Official Otoeko Warranty
The 6V - 24V Oto Elektrik Devre Tesisatı Kontrol Kalemi (Cr-V Çelik Problu) is backed by a 6 Months official Otoeko warranty against manufacturing defects, with full technical support.
Frequently Asked Questions
Key technical questions from technicians and workshops about the 6V - 24V Oto Elektrik Devre Tesisatı Kontrol Kalemi (Cr-V Çelik Problu).
Does this tester work on both 12V cars and 24V trucks?
Yes. It covers all 6V to 24V DC electrical systems including 6V motorcycles, 12V passenger cars, and 24V heavy-duty trucks and trailers.
Can I test fuses without pulling them out?
Yes. Simply touch the needle tip to the two exposed metal test tabs on the top of each blade fuse.
What are the dimensions of the probe and cable?
The ABS handle is 17.3 cm long, the Chrome-Vanadium steel probe is 8.3 cm long, and the flexible cable is approximately 96 cm long.
Is the 3W internal bulb replaceable?
Yes, the 3-Watt indicator bulb inside the handle can be easily replaced if needed.
Can it be used on 220V household outlets?
No. It is designed strictly for 6V-24V DC vehicle electrical circuits and must never be used on AC mains voltage.
Is the tip sharp enough for narrow connector pins?
Yes, the needle-point Chrome-Vanadium steel tip easily reaches recessed socket pins and tight harness terminals.
