OEM-GRADE DIAGNOSTIC HARNESS · PSA-LEXIA-DB15-ADP · FULL PINOUT
Peugeot & Citroën Lexia 3 Diagnostic Interface DB15 Adapter Header Cable
Replace worn or intermittent cables on your Peugeot & Citroën Lexia 3 / XS Evolution (Yuvarlak Soketli Ana Ünite) with a shielded, full-pin industrial harness built for reliable workshop diagnostics.
- PSA-LEXIA-DB15-ADP
- Full-Pin Pure Copper
- Locking Connector
- 100% Continuity Tested
Engineered for Professional Workshop Demands
The Lexia 3 DB15 Başlık Ara Kablosu is built to deliver speed, accuracy, and stability in busy service bays.
Authentic 1:1 OEM Full Pinout
Unlike budget cables with missing wires, every data, ignition sense, and power pin required for PSA CAN-Bus · VAN-Bus · K-Line / L-Line Sinyal Aktarımı is fully populated.
EMI/RFI Shielded Pure Copper Conductors
Multi-strand oxygen-free copper with foil shielding blocks electromagnetic interference during high-speed CAN and USB communication.
Locking Connectors with Strain Relief
Moulded strain-relief collars on both the Yuvarlak Kilitli Dişi Lexia 3 Konnektörü and 15-Pin (DB15) Vidalı Konnektör (30-Pin, 2-Pin ve S.1279 Modül Bağlantısı İçin) ends prevent internal wire fatigue.
Safe ECU Flashing & Calibration
Maintains rock-solid voltage and signal integrity during programming sessions in PSA Diagbox · Lexia · PP2000.
UNINTERRUPTED DIAGNOSTIC LINK
Essential Replacement Harness for Peugeot & Citroën Lexia 3 / XS Evolution (Yuvarlak Soketli Ana Ünite)
Over 80% of 'VCI Not Found' or 'Communication Error' faults are caused by damaged cables. Upgrading to this OEM-spec harness delivers:
- Instant, stable connection to all ECUs across Eski Nesil PSA 30-Pin / 2-Pin Soketli Araçlar ve S.1279 Ticari Modül Dönüşümü
- VCI-side termination: Yuvarlak Kilitli Dişi Lexia 3 Konnektörü
- Vehicle / PC termination: 15-Pin (DB15) Vidalı Konnektör (30-Pin, 2-Pin ve S.1279 Modül Bağlantısı İçin)
- Full protocol pass-through: PSA CAN-Bus · VAN-Bus · K-Line / L-Line Sinyal Aktarımı
WORKSHOP DURABILITY
Oil, Heat & Crush Resistant Industrial Jacket
Built to survive daily plug-in cycles on the workshop floor:
- Gold/nickel-plated terminal pins resist oxidation and contact wear
- High-flexibility elastomer jacket remains supple in cold weather
- Reference part specification: PSA-LEXIA-DB15-ADP
- 100% pin-to-pin continuity tested prior to dispatch
ARCHITECTURE & SYSTEM COMPATIBILITY
Lexia 3 DB15 Başlık Ara Kablosu Software, Protocol & ECU Coverage
Hardware and operating parameters engineered for uninterrupted dealer-level communication:
- Full Pinout: Matches PSA-LEXIA-DB15-ADP OEM wiring specification
- Locking Fit: Vibration-resistant connectors prevent dropouts
- Pure Copper: High-speed CAN/DoIP/USB transmission without packet loss
- Peugeot & Citroën Lexia 3 / XS Evolution (Yuvarlak Soketli Ana Ünite)

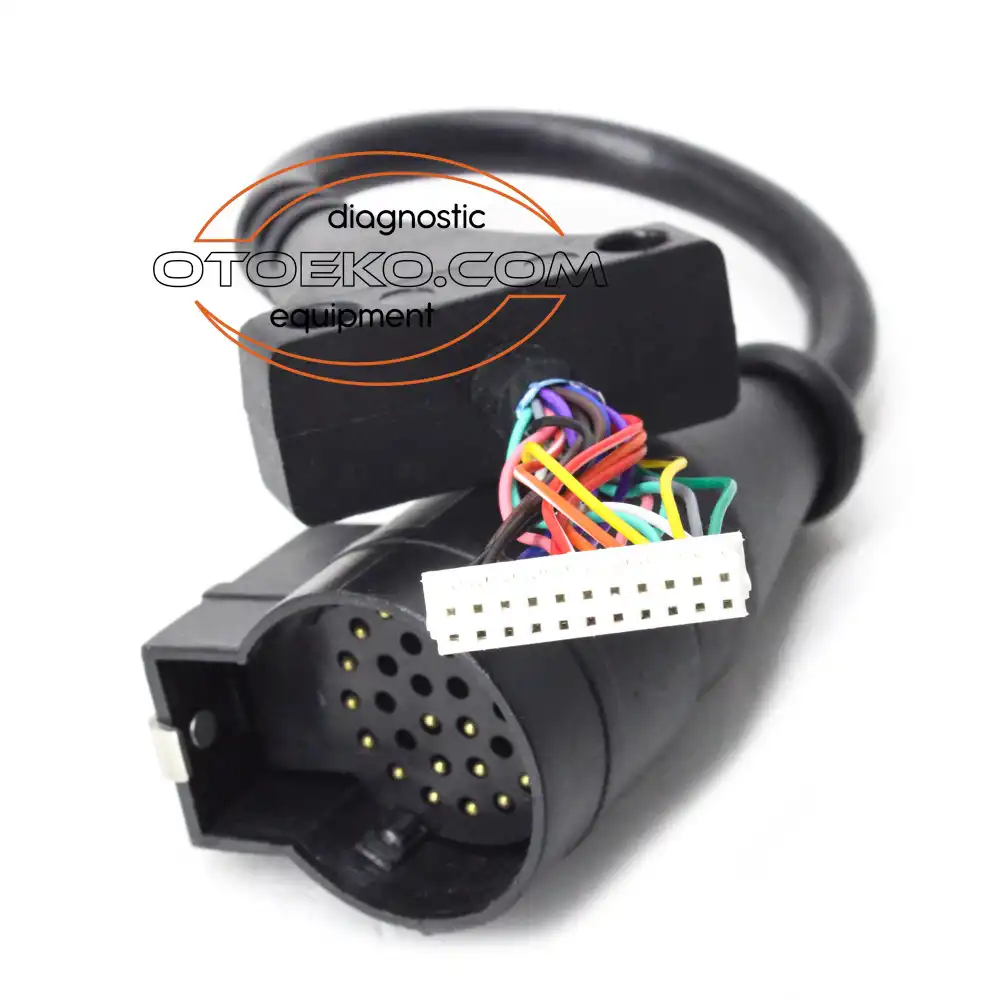

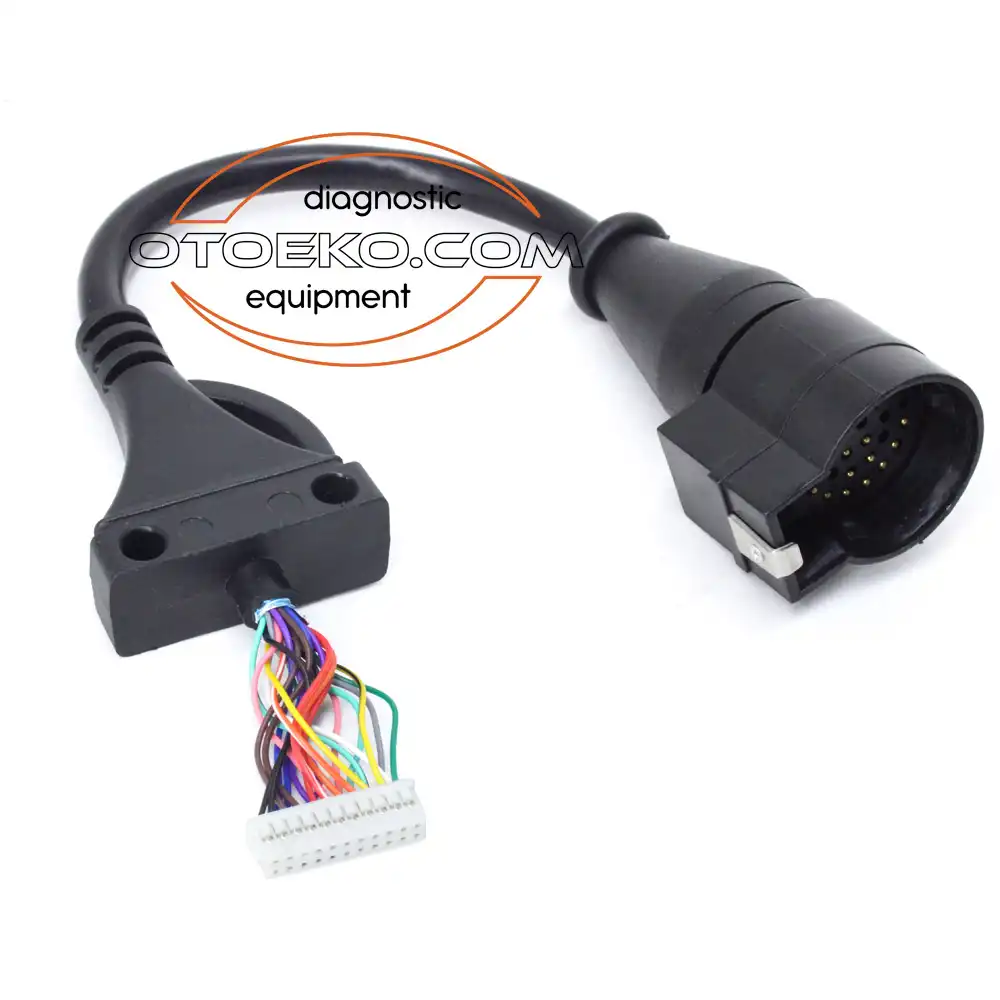

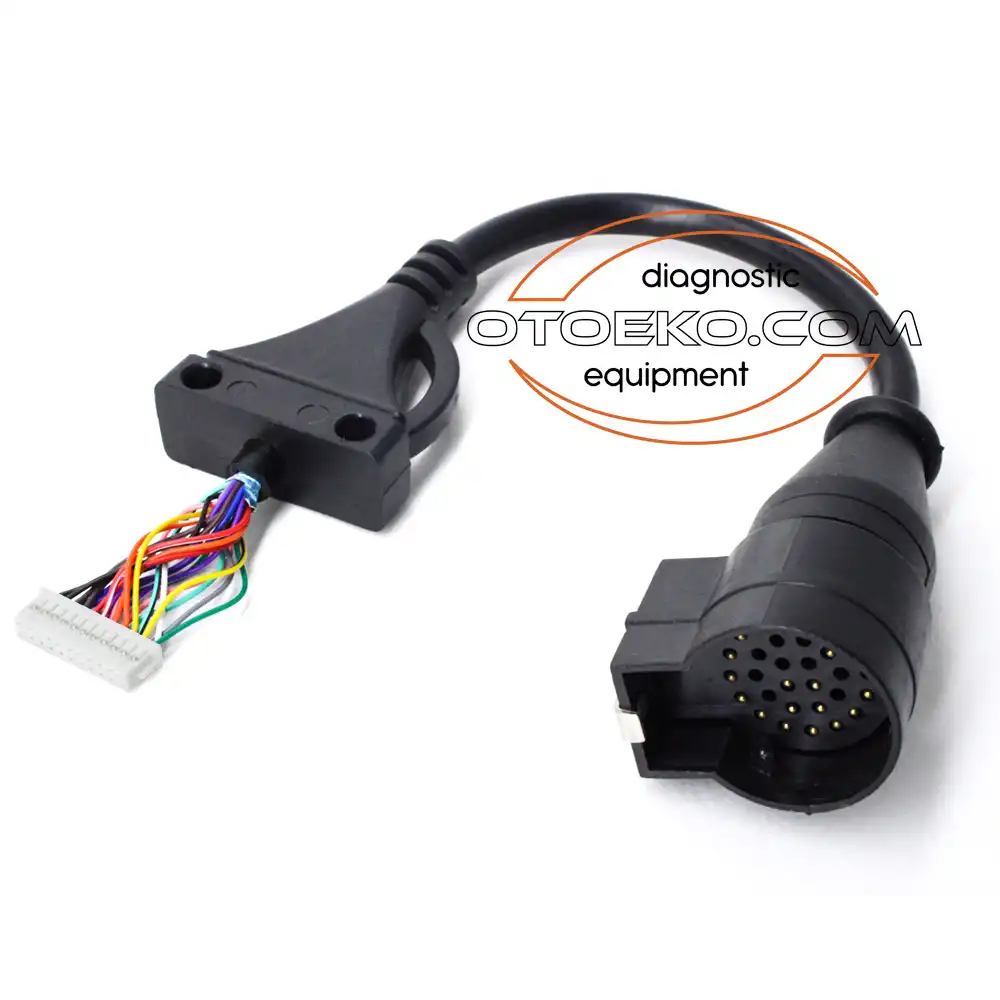

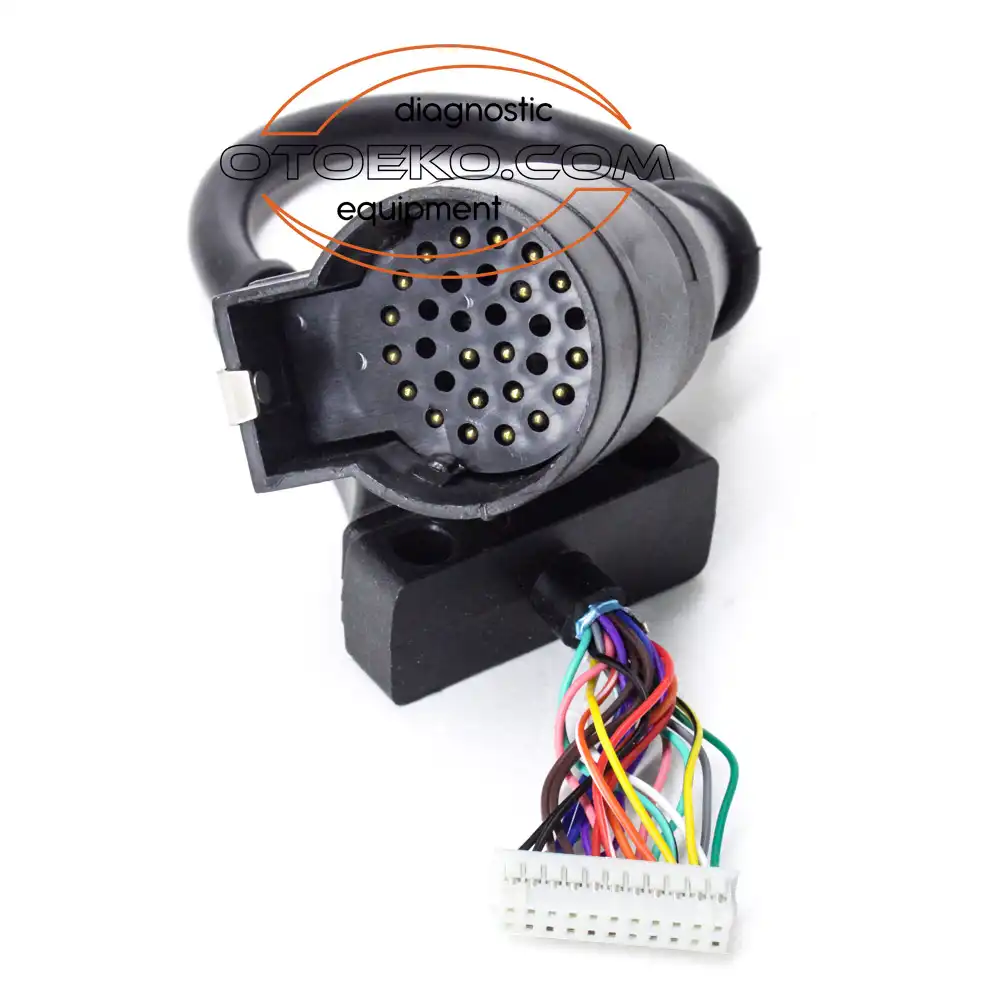

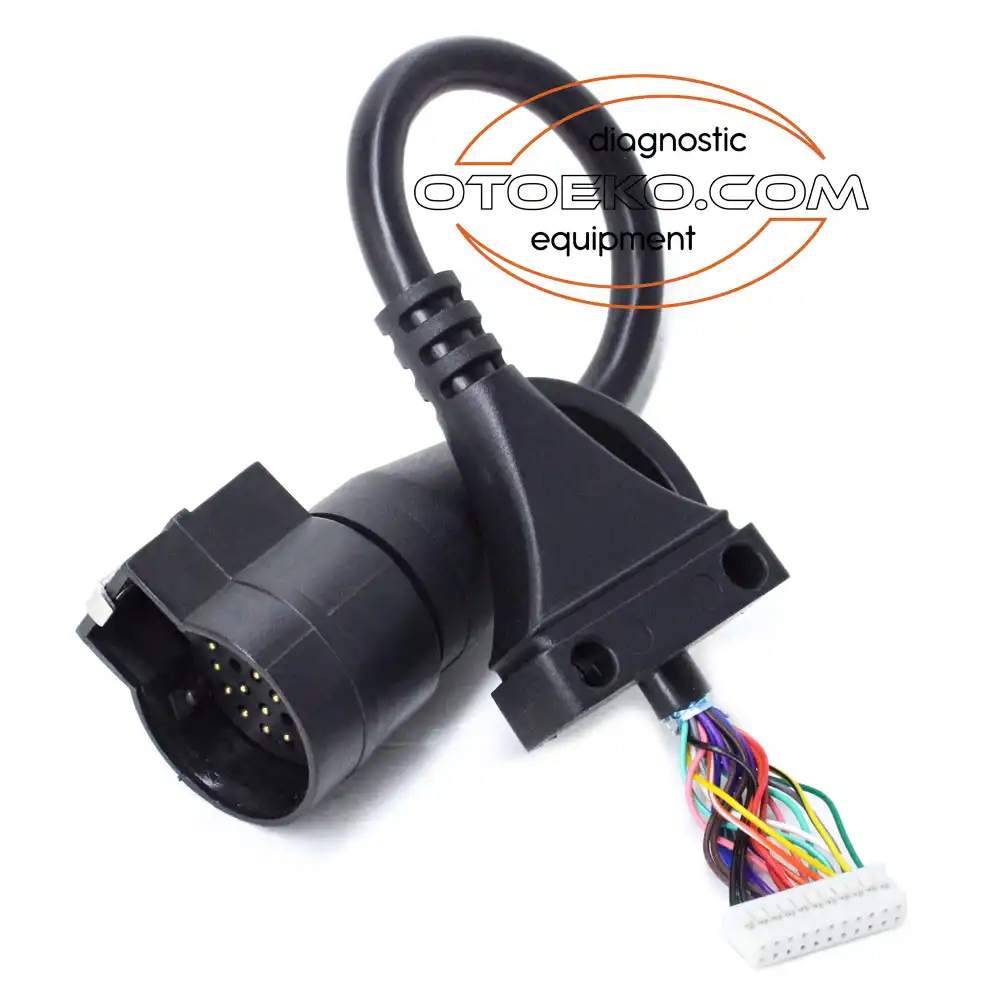

Detailed Visual & Technical Showcase
Close-up details and application views of the Lexia 3 DB15 Başlık Ara Kablosu.
Technical Specifications & System Parameters
Complete manufacturer-verified technical data and operating ranges.
| Product Model | Peugeot & Citroën Lexia 3 Diagnostic Interface DB15 Adapter Header Cable |
|---|---|
| Reference Part No | PSA-LEXIA-DB15-ADP |
| Compatible VCI Unit | Peugeot & Citroën Lexia 3 / XS Evolution (Yuvarlak Soketli Ana Ünite) |
| Compatible Software | PSA Diagbox · Lexia · PP2000 |
| VCI Side Connector | Yuvarlak Kilitli Dişi Lexia 3 Konnektörü |
| Vehicle / PC Connector | 15-Pin (DB15) Vidalı Konnektör (30-Pin, 2-Pin ve S.1279 Modül Bağlantısı İçin) |
|---|---|
| Supported Protocols | PSA CAN-Bus · VAN-Bus · K-Line / L-Line Sinyal Aktarımı |
| Vehicle / Equipment Range | Eski Nesil PSA 30-Pin / 2-Pin Soketli Araçlar ve S.1279 Ticari Modül Dönüşümü |
| Quality & Warranty | No Warranty on Consumable Cables (100% Tested Before Dispatch) |
Workshop Application & Operating Guide
Recommended 4-step standard procedure for accurate results.
Inspect Connector Pins
Verify both sockets are clean and free of bent pins or debris before connecting.
Lock VCI Connector
Seat the Yuvarlak Kilitli Dişi Lexia 3 Konnektörü firmly onto your VCI unit and tighten any locking screws.
Attach Vehicle / PC Plug
Connect the 15-Pin (DB15) Vidalı Konnektör (30-Pin, 2-Pin ve S.1279 Modül Bağlantısı İçin) and confirm the VCI power/status LEDs illuminate.
Disconnect by Connector Body
Always grasp the moulded connector body rather than pulling on the cable jacket.
Package Contents — Ready for the Workshop
Complete kit inspected prior to dispatch.
- 1 × Peugeot & Citroën Lexia 3 Diagnostic Interface DB15 Adapter Header Cable (PSA-LEXIA-DB15-ADP)
- 1 × Protective Anti-Static Bag (100% Continuity Tested)
100% Pin Continuity & Quality Control Assurance
Every Lexia 3 DB15 Başlık Ara Kablosu harness is 100% continuity- and isolation-tested on the Otoeko test bench prior to dispatch (Consumable cables carry no warranty against physical wear or strain).
Frequently Asked Questions
Key technical questions from technicians and workshops about the Lexia 3 DB15 Başlık Ara Kablosu.
Which diagnostic interface does this cable fit?
It is specifically engineered for Peugeot & Citroën Lexia 3 / XS Evolution (Yuvarlak Soketli Ana Ünite).
Are all internal pins populated?
Yes, it features a complete 1:1 OEM pinout supporting PSA CAN-Bus · VAN-Bus · K-Line / L-Line Sinyal Aktarımı.
Will this fix intermittent connection drops?
Yes, if your existing cable has internal wire fatigue or loose pins, replacing it restores stable VCI communication.
Is it safe for ECU programming?
Yes, the shielded pure copper conductors and locking connectors ensure uninterrupted data transfer.
Which vehicles are supported?
Supports Eski Nesil PSA 30-Pin / 2-Pin Soketli Araçlar ve S.1279 Ticari Modül Dönüşümü.
What is the warranty policy on cables?
Diagnostic cables are consumable workshop items and carry no warranty against physical wear, but every unit is 100% continuity-tested prior to shipping.
