MultiEcuScan • OTO0271
Fiat / Alfa Romeo Multiecuscan OBD2 A3 Yellow Adapter Cable (Low-Speed CAN / Proxi Alignment / BCM & Cluster)
Fiat / Alfa Romeo Multiecuscan OBD2 A3 Yellow Adapter Cable (Low-Speed CAN / Proxi Alignment / BCM & Cluster)
- OTO0271
- MultiEcuScan
Engineered for Professional Workshop Demands
The OTO0271 is built to deliver speed, accuracy, and stability in busy service bays.
Essential for PROXI Alignment
Eliminates blinking odometer mileage after replacing radios/Blue&Me units or retrofitting factory options.
Full Body Computer (BCM) & Cluster Access
Connects to the Body Computer, Instrument Cluster, Service Interval Reset, Steering Column, and Door modules.
CAN Airbag (SRS) & HVAC Diagnostics
Reads and clears fault codes on B-CAN Airbag and Climate Control modules across Punto Evo, 500, Giulietta, Doblo, and Fiorino.
Retrofit & Hidden Feature Coding
Enables coding of retrofitted Cruise Control stalks, fog lights, outside temperature sensors, and DRL menus.
ARCHITECTURE
Essential for PROXI Alignment
Eliminates blinking odometer mileage after replacing radios/Blue&Me units or retrofitting factory options.
- Adapter Code / Color: Multiecuscan Adapter 3 (A3) / Yellow Cable
- Connectors: SAE J1962M 16-Pin Male (Vehicle) -> SAE J1962F 16-Pin Female (Scanner)
- Internal Pin Routing: Pin 6 -> Pin 1 (CAN-H), Pin 14 -> Pin 9 (CAN-L), Pin 7 -> Pin 12, Pins 4/5 -> 4/5, Pin 16 -> 16
- Target Network: FCA Low-Speed Fault-Tolerant CAN (B-CAN / 50 kbps)
DIAGNOSTICS
Full Body Computer (BCM) & Cluster Access
Connects to the Body Computer, Instrument Cluster, Service Interval Reset, Steering Column, and Door modules.
- Conductor Material: 100% Pure Oxygen-Free Copper (OFC)
- Operating Voltage: 12V DC Automotive Systems
- Cable Length: Approx. 25 - 30 cm
- Usage Note: Inline pin-crossover adapter; requires an ELM327 or OBDLink interface to communicate with a PC/phone
COMPATIBILITY
CAN Airbag (SRS) & HVAC Diagnostics
Reads and clears fault codes on B-CAN Airbag and Climate Control modules across Punto Evo, 500, Giulietta, Doblo, and Fiorino.

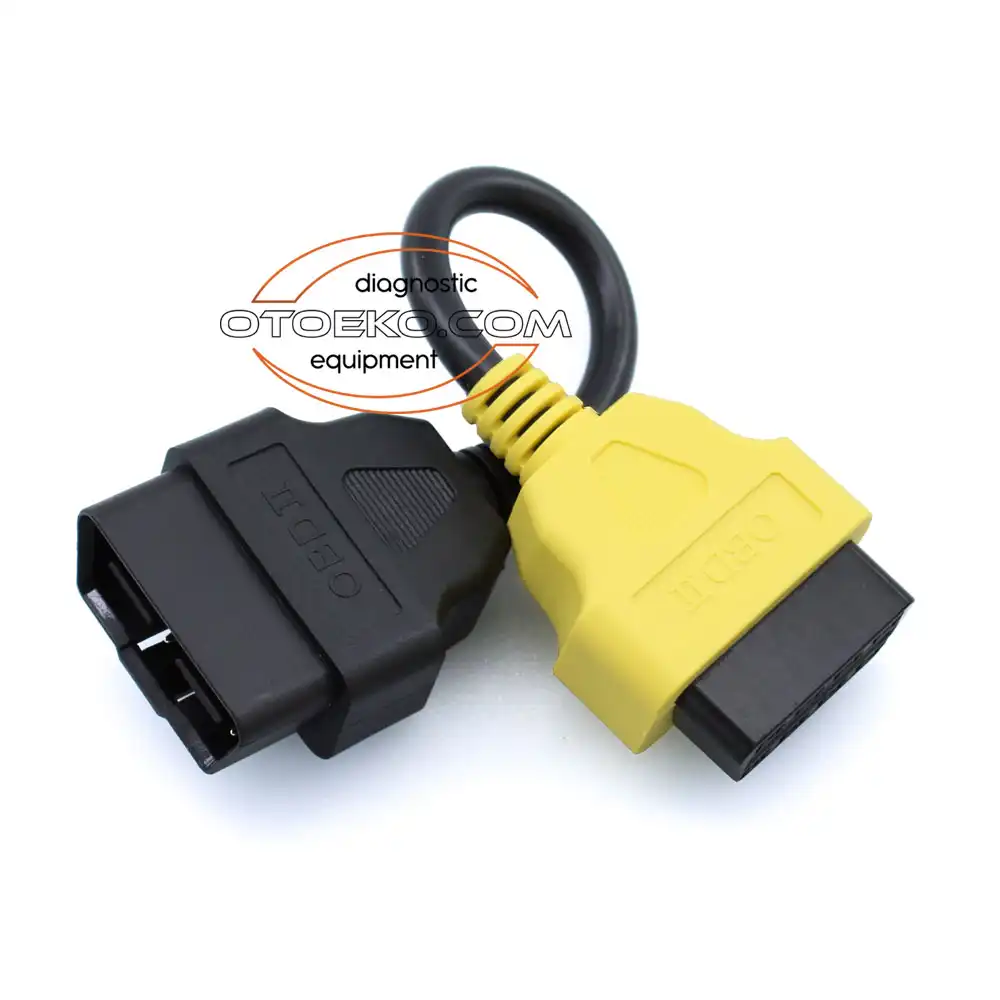

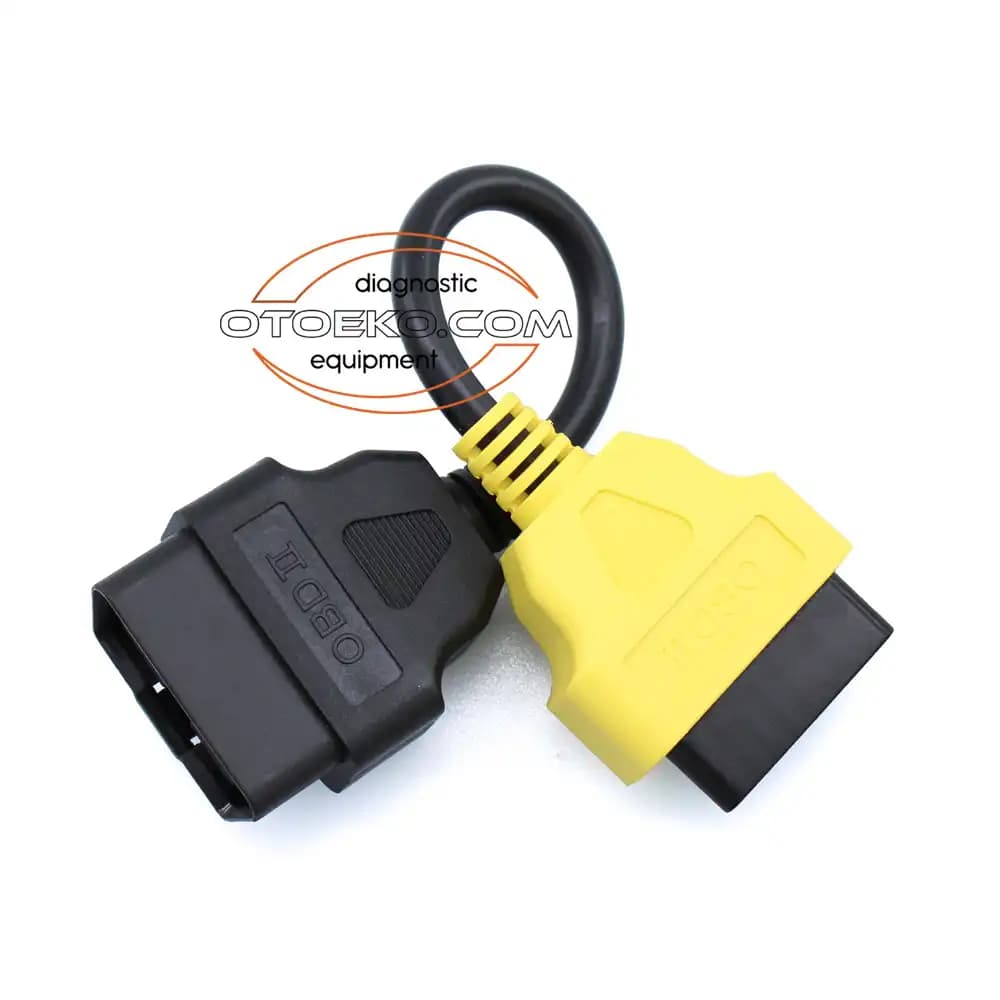

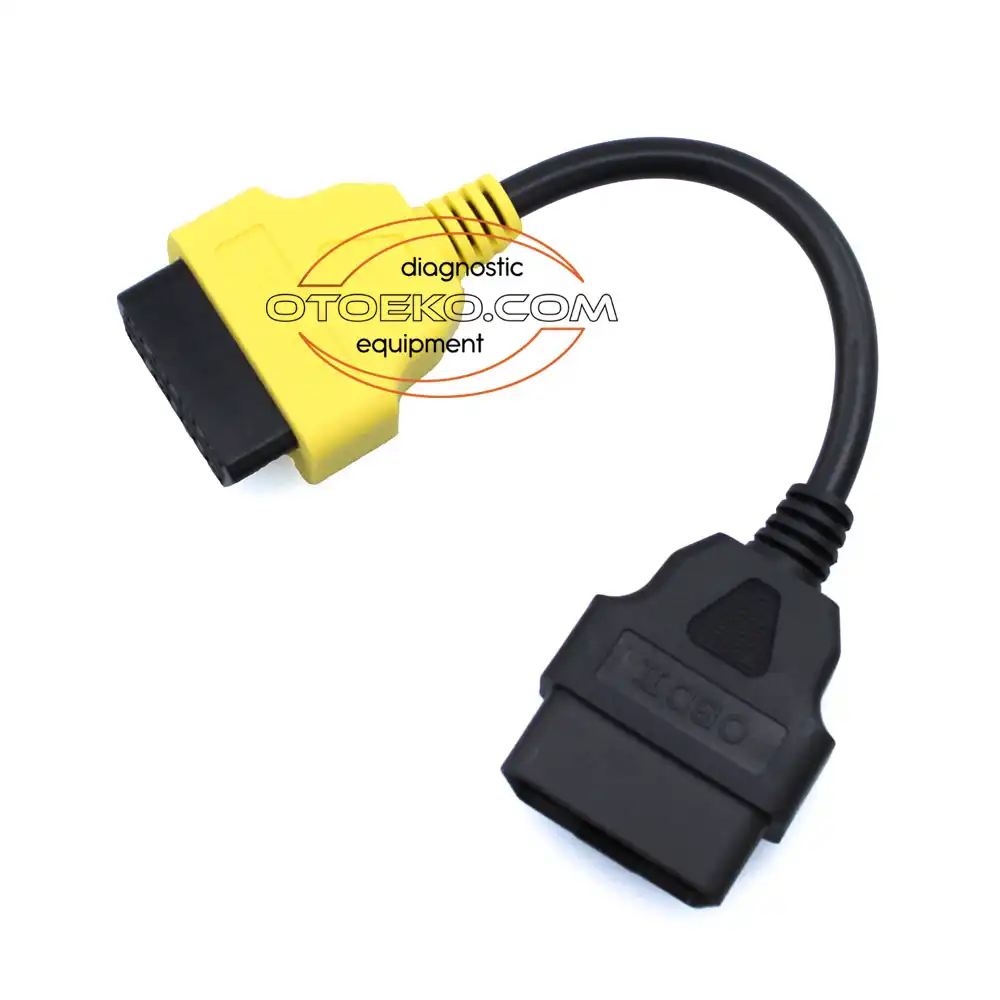

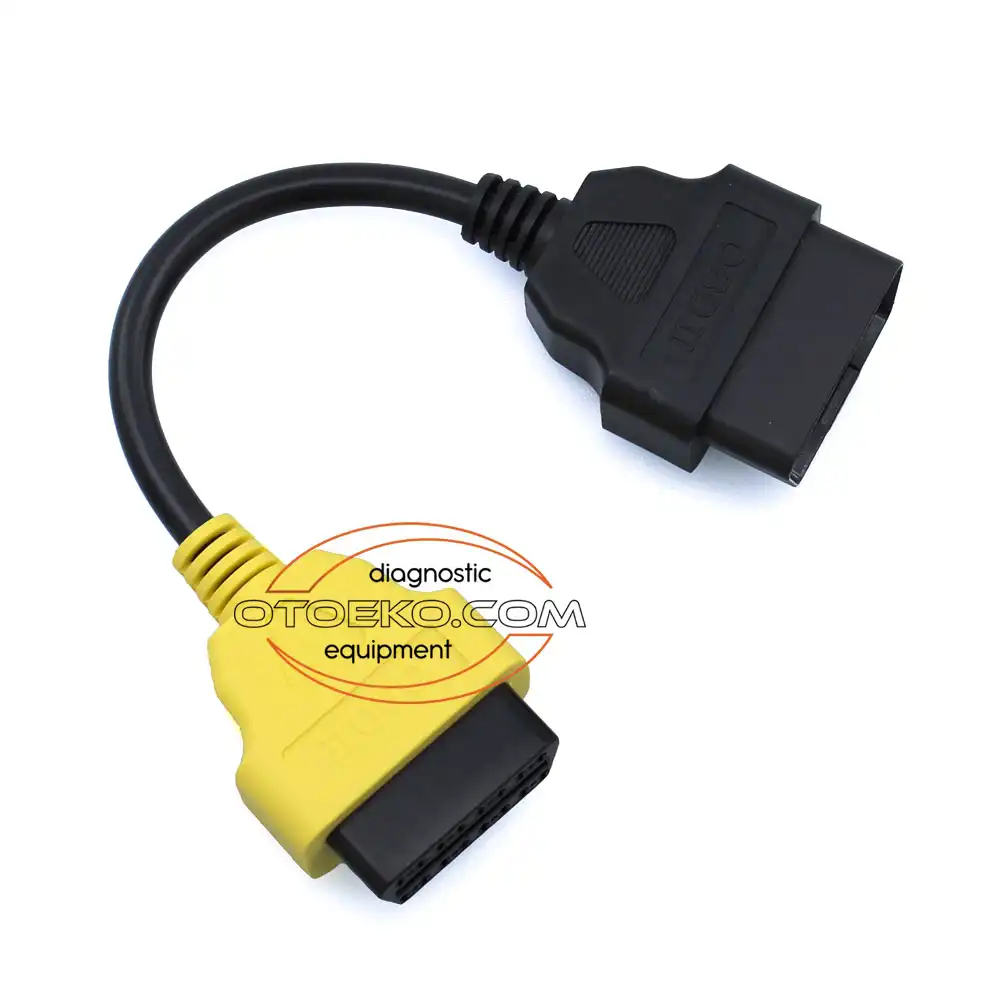

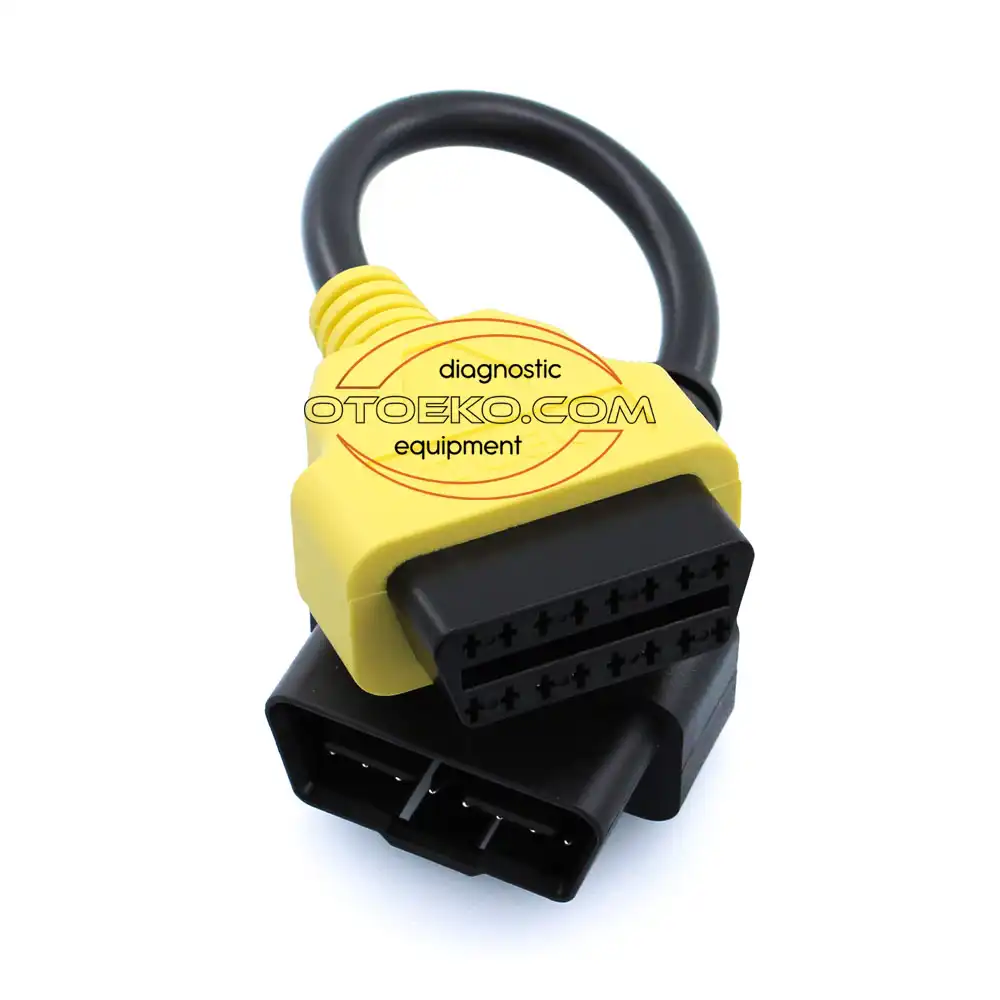

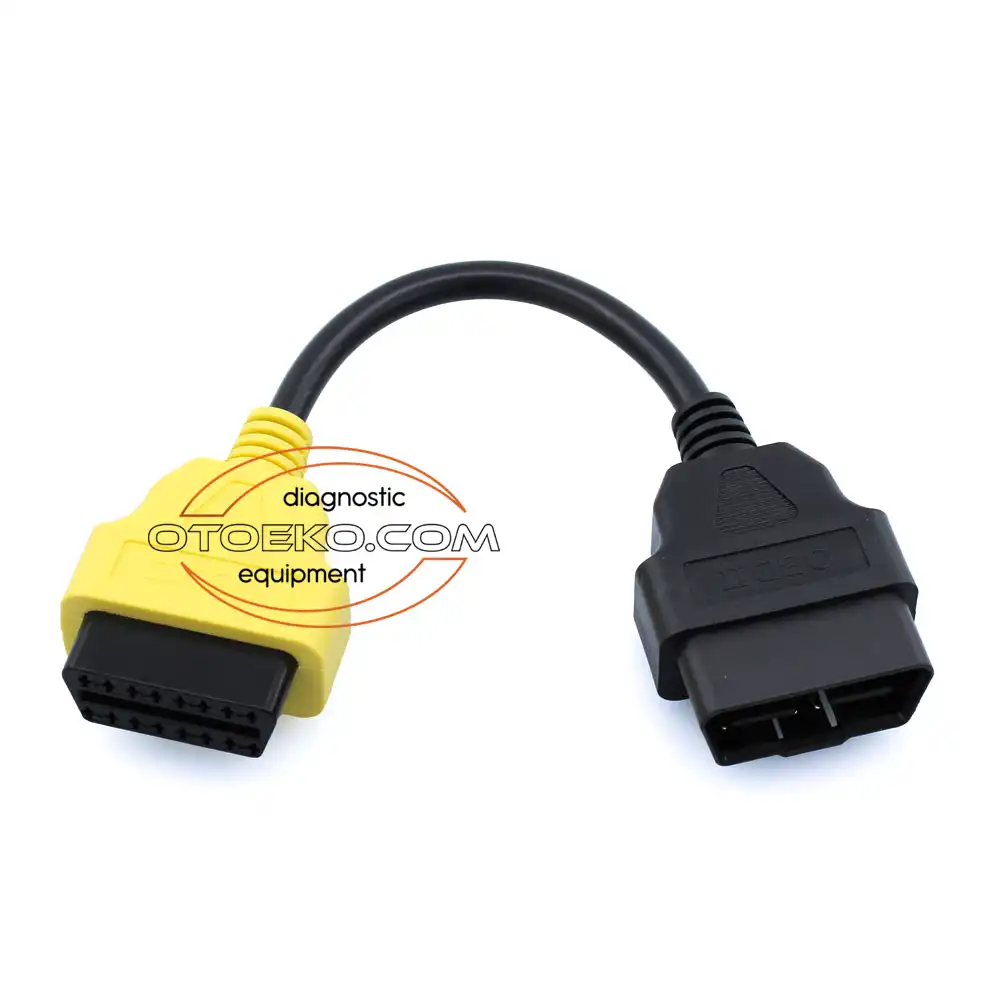

Detailed Visual & Technical Showcase
Close-up details and application views of the OTO0271.
Technical Specifications & System Parameters
Complete manufacturer-verified technical data and operating ranges.
| Adapter Code / Color | Multiecuscan Adapter 3 (A3) / Yellow Cable |
|---|---|
| Connectors | SAE J1962M 16-Pin Male (Vehicle) -> SAE J1962F 16-Pin Female (Scanner) |
| Internal Pin Routing | Pin 6 -> Pin 1 (CAN-H), Pin 14 -> Pin 9 (CAN-L), Pin 7 -> Pin 12, Pins 4/5 -> 4/5, Pin 16 -> 16 |
| Target Network | FCA Low-Speed Fault-Tolerant CAN (B-CAN / 50 kbps) |
| Conductor Material | 100% Pure Oxygen-Free Copper (OFC) |
|---|---|
| Operating Voltage | 12V DC Automotive Systems |
| Cable Length | Approx. 25 - 30 cm |
| Usage Note | Inline pin-crossover adapter; requires an ELM327 or OBDLink interface to communicate with a PC/phone |
Workshop Application & Operating Guide
Recommended 4-step standard procedure for accurate results.
Package Contents — Ready for the Workshop
Complete kit inspected prior to dispatch.
6 Months Otoeko Warranty Official Otoeko Warranty
The OTO0271 is backed by a 6 Months Otoeko Warranty official Otoeko warranty against manufacturing defects, with full technical support.
Frequently Asked Questions
Key technical questions from technicians and workshops about the OTO0271.
Does this Yellow cable connect directly to a laptop on its own?
No. This is an inline 16-pin-to-16-pin crossover adapter that plugs between your vehicle’s OBD2 port and your ELM327 or OBDLink scanner.
Will this fix the blinking odometer on my Fiat 500 / Punto / Fiorino after installing an aftermarket stereo?
Yes! Installing an aftermarket stereo removes the factory Blue&Me/radio node from the CAN bus, causing the mileage to flash. Performing a "PROXI Alignment" in Multiecuscan using this Yellow (A3) adapter stops the blinking permanently.
Should I leave the Yellow adapter plugged in when scanning the Engine ECU?
No. Connect your ELM327 directly to the car for Engine and ABS modules (which use Pins 6 & 14), and insert the Yellow A3 adapter only when Multiecuscan prompts for Adapter 3 (BCM, Cluster, Airbag, Proxi, etc.).
Does it work with AlfaOBD on Android?
Yes! AlfaOBD uses the exact same color-coded adapter system and requires the Yellow Adapter for low-speed CAN modules.
Is it compatible with Bluetooth, Wi-Fi, and USB ELM327 adapters?
Yes, because it is a passive hardware pin router, it works with all wired and wireless ELM327 and OBDLink interfaces.
Do Fiat Tipo / Egea models also need the Grey A6 adapter?
On newer Fiat Tipo/Egea and 500X/Renegade models with dual low-speed CAN buses, some modules use Yellow (A3) while others require the Grey (A6 - SKU OTO0352) adapter.
